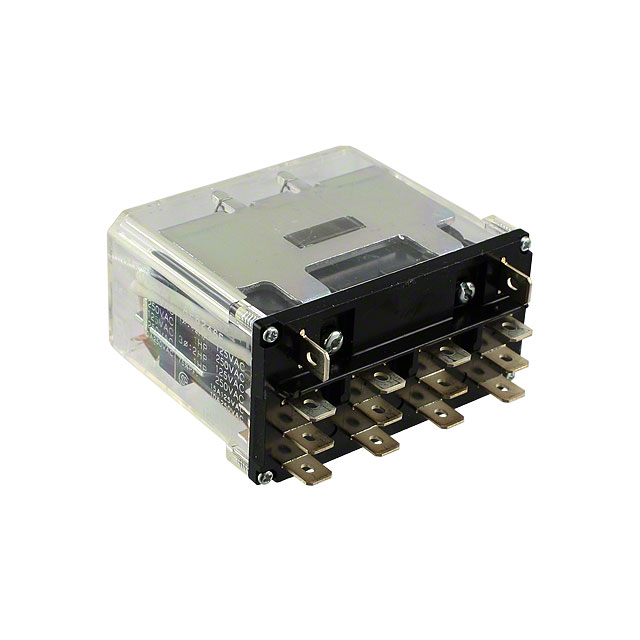

HG4-DC110V-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 20A 110V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 20A 110V

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Relay Type	Coil Voltage	Must Operate Voltage	Termination Style	Mounting Type	Contact Form	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Contact Material	Coil Type	Operate Time	Must Release Voltage	Switching Voltage	Coil Resistance	Release Time
Panasonic Electric Works HG4-DC110V-F	CSA UR	General Purpose	110 VDC	88 VDC	Plug In Quick Connect - 0.250" (6.3mm)	Socketable	4PDT (4 Form C)	20.3 mA	40 °C	-50 °C	20 A	Silver Tin Oxide (AgSnO)	Non Latching	40 ms	11 VDC	250 VAC
Panasonic Electric Works HG4-DC24V	CSA UR	General Purpose	24 VDC	19.2 VDC	Plug In Quick Connect - 0.250" (6.3mm)	Socketable	4PDT (4 Form C)	81.2 mA	40 °C	-50 °C	20 A	Silver Alloy	Non Latching	25 ms	2.4 VDC	250 VAC	296 Ohms	25 ms
Panasonic Electric Works HG4-DC6V	CSA UR	General Purpose		4.8 VDC	Plug In Quick Connect - 0.250" (6.3mm)	Socketable	4PDT (4 Form C)	325 mA	40 °C	-50 °C	20 A	Silver Alloy	Non Latching	25 ms	0.6 VDC	250 VAC	18.5 Ohms	25 ms
