Z06-10-028-0

Active

Igus

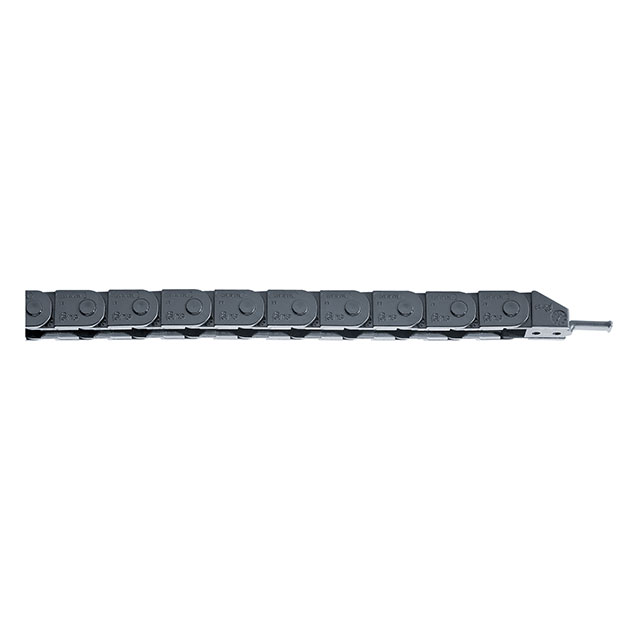

CABLE CARRIER .59H X .65W 1=1FT

Search across all available documentation for this part.

Active

Igus

CABLE CARRIER .59H X .65W 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	Z06-10-028-0

Cavity Height [z]	0.41 in
Cavity Height [z]	10.41 mm
Cavity Width	9.91 mm
Cavity Width	0.39 in
Frame Type	Open
Link Pitch	0.79 in
Link Pitch	20.07 mm
Loading Side	Inside and Outside Bend
Material	Igumid G
Minimum Bend Radius	27.94 mm
Minimum Bend Radius [Min] [radius]	1.1 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Outer Height	14.99 mm
Outer Height	0.59 in
Outer Width [x]	16.51 mm
Outer Width [x]	0.65 in

CABLE CARRIER .59H X .65W 1=1FT

Part	Material	Minimum Bend Radius [Min] [radius]	Minimum Bend Radius	Frame Type	Loading Side	Operating Temperature [Min]	Operating Temperature [Max]	Link Pitch	Link Pitch	Cavity Height [z]	Cavity Height [z]	Outer Width [x]	Outer Width [x]	Outer Height	Outer Height	Cavity Width	Cavity Width
Igus Z06-10-028-0	Igumid G	1.1 in	27.94 mm	Open	Inside and Outside Bend	-40 °C	80 C	0.79 in	20.07 mm	0.41 in	10.41 mm	16.51 mm	0.65 in	14.99 mm	0.59 in	9.91 mm	0.39 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CABLE CARRIER .59H X .65W 1=1FT
