CT100LW-ID6
ActiveAllegro MicroSystems
DIFFERENTIAL TMR HIGH SENSITIVIT
Deep-Dive with AI
Search across all available documentation for this part.
CT100LW-ID6
ActiveAllegro MicroSystems
DIFFERENTIAL TMR HIGH SENSITIVIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CT100LW-ID6 |
|---|---|
| Axis | Single |
| Bandwidth [Max] | 1 kHz |
| Bandwidth [Min] | 0.1 Hz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Differential |

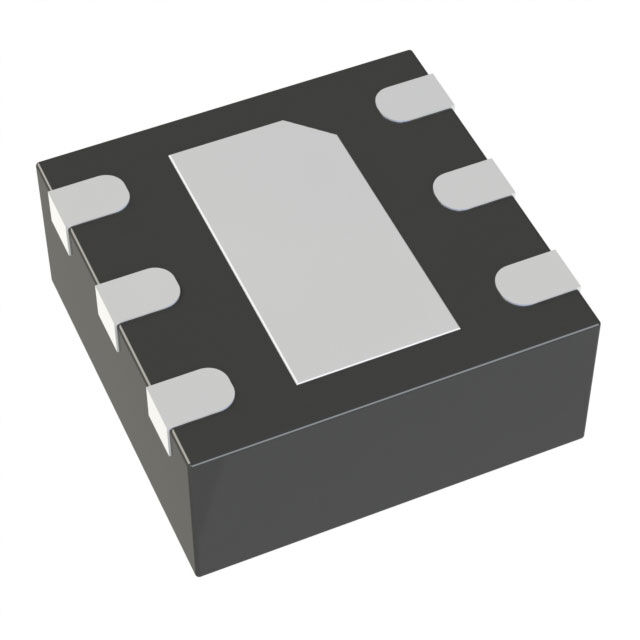

| Package / Case | 6-XFDFN Exposed Pad |
| Sensing Range [Max] | 20 mT |
| Sensing Range [Min] | -20 mT |
| Supplier Device Package | 6-DFN (1.5x1.5) |
| Technology | Magnetoresistive |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.31 | |
| 5 | $ 1.11 | |||
| 10 | $ 1.03 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.81 | |||
| 500 | $ 0.68 | |||
| 1000 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 1.31 | ||
| 5 | $ 1.11 | |||
| 10 | $ 1.03 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.81 | |||
| 500 | $ 0.68 | |||
| 1000 | $ 0.63 | |||
| Tape & Reel (TR) | 3000 | $ 0.56 | ||
| 6000 | $ 0.52 | |||
| 9000 | $ 0.50 | |||
| 15000 | $ 0.47 | |||
| 21000 | $ 0.46 | |||
Description
General part information
CT100 Series
Magnetoresistive Sensor Single Axis 6-DFN (1.5x1.5)
