G125-FC12605L0-0150F
ActiveHarwin Inc.

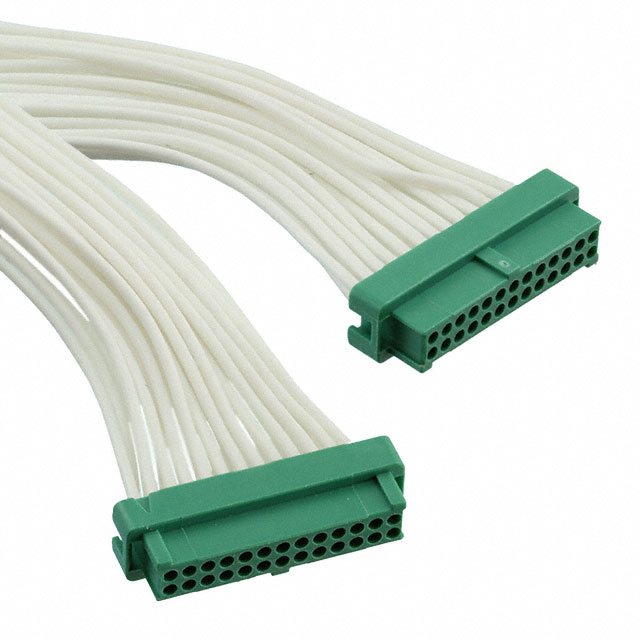

CABLE ASSY, GECKO RCPT-RCPT, 150MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
G125-FC12605L0-0150F
ActiveHarwin Inc.
CABLE ASSY, GECKO RCPT-RCPT, 150MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-FC12605L0-0150F |
|---|---|
| Cable Termination | Crimp |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Features | Latch Holder, Polarizing Key |
| Length | 150 mm |
| Length | 5.91 " |
| Length | 0.492 ft |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Pitch - Connector | 0.049 in |
| Pitch - Connector | 1.25 mm |
| Shielding | Unshielded |
G125-FC1 Series
| Part | Shielding | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Connector | Length [x] | Length [x] | Length [x] | Connector Type | Cable Termination | Features | Contact Finish | Length | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Unshielded | 20 | 2 | 0.049 in | 1.25 mm | 0.984 ' | 11.81 " | 300 mm | Socket to Socket | Crimp | Latch Holder Polarizing Key | Gold | ||||
Harwin Inc. | Unshielded | 12 | 2 | 0.049 in | 1.25 mm | Socket to Individual Wire Leads | Crimp | Polarizing Key Screw Lock | Gold | 150 mm | 5.91 " | 0.492 ft | ||||
Harwin Inc. | Unshielded | 34 | 2 | 0.049 in | 1.25 mm | 17.76 in | 450 mm | Socket to Individual Wire Leads | Crimp | Polarizing Key Screw Lock | Gold | |||||
Harwin Inc. | Unshielded | 26 | 2 | 0.049 in | 1.25 mm | 0.984 ' | 11.81 " | 300 mm | Socket to Socket | Crimp | Polarizing Key Screw Lock | Gold | ||||
Harwin Inc. | Unshielded | 26 | 2 | 0.049 in | 1.25 mm | 17.76 in | 450 mm | Socket to Individual Wire Leads | Crimp | Polarizing Key Screw Lock | Gold | |||||
Harwin Inc. | Unshielded | 12 | 2 | 0.049 in | 1.25 mm | 17.76 in | 450 mm | Socket to Individual Wire Leads | Crimp | Latch Holder Polarizing Key | Gold | |||||
Harwin Inc. | Unshielded | 26 | 2 | 0.049 in | 1.25 mm | Socket to Socket | Crimp | Latch Holder Polarizing Key | Gold | 150 mm | 5.91 " | 0.492 ft | ||||
Harwin Inc. | Unshielded | 26 | 2 | 0.049 in | 1.25 mm | 0.984 ' | 11.81 " | 300 mm | Socket to Socket | Crimp | Polarizing Key Screw Lock | Gold | ||||
Harwin Inc. | Unshielded | 2 | 0.049 in | 1.25 mm | 0.984 ' | 11.81 " | 300 mm | Socket to Socket | Crimp | Latch Holder Polarizing Key | Gold | 16 | ||||
Harwin Inc. | Unshielded | 26 | 2 | 0.049 in | 1.25 mm | Socket to Individual Wire Leads | Crimp | Polarizing Key Screw Lock | Gold | 150 mm | 5.91 " | 0.492 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-FC1 Series
26 Position Cable Assembly Rectangular Socket to Socket 0.492' (150.00mm, 5.91")
