TRF37A73IDSGR
Active1 TO 6000 MHZ 12DB RF GAIN BLOCK AMPLIFIER WITH POWERDOWN PIN 8-WSON -40 TO 85
Deep-Dive with AI
Search across all available documentation for this part.

TRF37A73IDSGR
Active1 TO 6000 MHZ 12DB RF GAIN BLOCK AMPLIFIER WITH POWERDOWN PIN 8-WSON -40 TO 85
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | TRF37A73IDSGR | TRF37A73 Series |
---|---|---|
Current - Supply | 55 mA | 55 mA |
Frequency [Max] | 6 GHz | 6 GHz |
Frequency [Min] | 1 MHz | 1 MHz |
Gain | 12 dBi | 12 dBi |
Mounting Type | Surface Mount | Surface Mount |
Noise Figure | 4.5 dB | 4.5 dB |
P1dB | 14.5 dBm | 14.5 dBm |

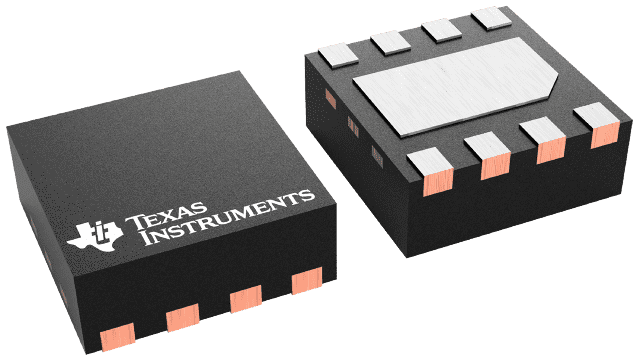

Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
Supplier Device Package | 8-WSON (2x2) | 8-WSON (2x2) |
Test Frequency | 6 GHz | 2 - 6 GHz |
Voltage - Supply | 3.3 V | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TRF37A73 Series
1 to 6000 MHz 12dB RF Gain Block Amplifier with Powerdown Pin
Part | Frequency [Min] | Frequency [Max] | Current - Supply | Test Frequency | Gain | Noise Figure | P1dB | Mounting Type | Package / Case | Supplier Device Package | Voltage - Supply |
---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TRF37A73IDSGRThe TRF37A73 is packaged in a 2.00mm × 2.00mm WSON with a power down pin feature making it ideal for applications where space and low power modes are critical.
The TRF37A73 is designed for ease of use. For maximum flexibility, this family of parts uses a common 3.3 V supply and consumes 55 mA. In addition, this family was designed with an active bias circuit that provides a stable and predictable bias current over process, temperature and voltage variations. For gain and linearity budgets the device was designed to provide a flat gain response and excellent OIP3 out to 6000 MHz. For space constrained applications, this family is internally matched to 50 Ω, which simplifies ease of use and minimizes needed PCB area.
The TRF37A73 is packaged in a 2.00mm × 2.00mm WSON with a power down pin feature making it ideal for applications where space and low power modes are critical.
The TRF37A73 is designed for ease of use. For maximum flexibility, this family of parts uses a common 3.3 V supply and consumes 55 mA. In addition, this family was designed with an active bias circuit that provides a stable and predictable bias current over process, temperature and voltage variations. For gain and linearity budgets the device was designed to provide a flat gain response and excellent OIP3 out to 6000 MHz. For space constrained applications, this family is internally matched to 50 Ω, which simplifies ease of use and minimizes needed PCB area. | 1 MHz | 6 GHz | 55 mA | 6 GHz | 12 dBi | 4.5 dB | 14.5 dBm | Surface Mount | 8-WFDFN Exposed Pad | 8-WSON (2x2) | 3.3 V |
Texas Instruments TRF37A73IDSGTThe TRF37A73 is packaged in a 2.00mm × 2.00mm WSON with a power down pin feature making it ideal for applications where space and low power modes are critical.
The TRF37A73 is designed for ease of use. For maximum flexibility, this family of parts uses a common 3.3 V supply and consumes 55 mA. In addition, this family was designed with an active bias circuit that provides a stable and predictable bias current over process, temperature and voltage variations. For gain and linearity budgets the device was designed to provide a flat gain response and excellent OIP3 out to 6000 MHz. For space constrained applications, this family is internally matched to 50 Ω, which simplifies ease of use and minimizes needed PCB area.
The TRF37A73 is packaged in a 2.00mm × 2.00mm WSON with a power down pin feature making it ideal for applications where space and low power modes are critical.
The TRF37A73 is designed for ease of use. For maximum flexibility, this family of parts uses a common 3.3 V supply and consumes 55 mA. In addition, this family was designed with an active bias circuit that provides a stable and predictable bias current over process, temperature and voltage variations. For gain and linearity budgets the device was designed to provide a flat gain response and excellent OIP3 out to 6000 MHz. For space constrained applications, this family is internally matched to 50 Ω, which simplifies ease of use and minimizes needed PCB area. | 1 MHz | 6 GHz | 55 mA | 2 GHz | 12 dBi | 4.5 dB | 14.5 dBm | Surface Mount | 8-WFDFN Exposed Pad | 8-WSON (2x2) | 3.3 V |
Description
General part information
TRF37A73 Series
The TRF37A73 is packaged in a 2.00mm × 2.00mm WSON with a power down pin feature making it ideal for applications where space and low power modes are critical.
The TRF37A73 is designed for ease of use. For maximum flexibility, this family of parts uses a common 3.3 V supply and consumes 55 mA. In addition, this family was designed with an active bias circuit that provides a stable and predictable bias current over process, temperature and voltage variations. For gain and linearity budgets the device was designed to provide a flat gain response and excellent OIP3 out to 6000 MHz. For space constrained applications, this family is internally matched to 50 Ω, which simplifies ease of use and minimizes needed PCB area.
The TRF37A73 is packaged in a 2.00mm × 2.00mm WSON with a power down pin feature making it ideal for applications where space and low power modes are critical.
