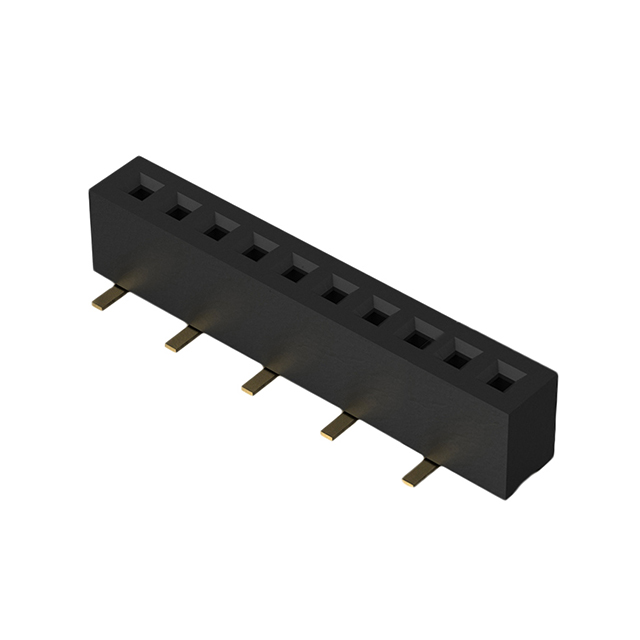

BC070-10-A-1-L-C

Active

GCT

10POS 1.0MM PITCH SOCKET, SIL, S

Search across all available documentation for this part.

Active

GCT

10POS 1.0MM PITCH SOCKET, SIL, S

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC070-10-A-1-L-C	BC070 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	1 A	1 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place	Pick and Place
Insulation Color	Black	Black
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	10	4 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

CONN, RCPT, 4POS, 1ROW, 1MM, SMT ROHS COMPLIANT: YES

Part	Features	Contact Material	Mounting Type	Contact Finish - Mating	Material Flammability Rating	Number of Positions	Number of Rows	Fastening Type	Insulation Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Shape	Contact Finish Thickness - Mating	Voltage Rating	Insulation Color	Number of Positions Loaded	Contact Type	Termination
GCT BC070-04-A-1-L-C	Pick and Place	Phosphor Bronze	Surface Mount	Gold	UL94 V-0	4	1	Push-Pull	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	1 A	Gold	Flash	-40 °C	105 ░C	Receptacle, Bottom or Top Entry	Square	Flash	250 VDC	Black	All	Female Socket	Solder
GCT BC070-10-A-1-L-C	Pick and Place	Phosphor Bronze	Surface Mount	Gold	UL94 V-0	10	1	Push-Pull	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	1 A	Gold	Flash	-40 °C	105 ░C	Receptacle, Bottom or Top Entry	Square	Flash	250 VDC	Black	All	Female Socket	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Receptacle, Bottom or Top Entry Connector 0.039" (1.00mm) Surface Mount Gold
