JWM11BHH-H

Active

NKK Switches

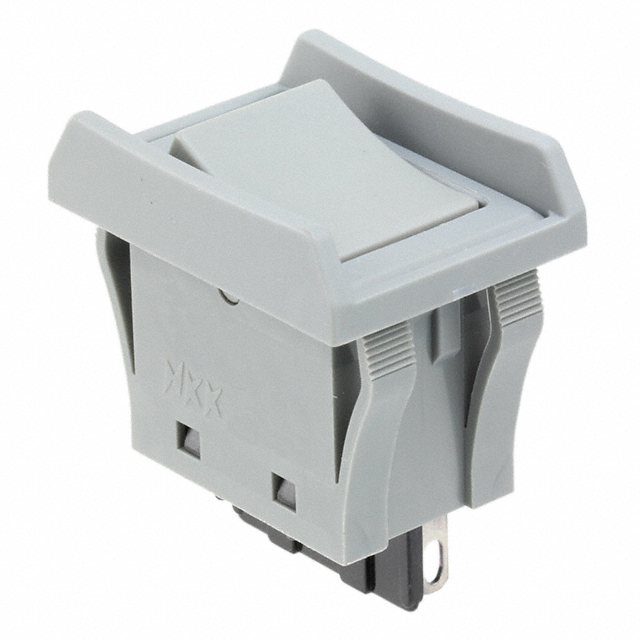

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JWM11BHH-H

Active

NKK Switches

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWM11BHH-H

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	SPST
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	Dust Proof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	24 mm
Panel Cutout Dimensions [y]	15.4 mm
Switch Function	On-Off
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	125 V

JWM11B Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Features	Mounting Type	Voltage Rating - AC	Switch Function	Mechanical Life	Circuit	Actuator Type	Color - Actuator/Cap	Termination Style	Termination Style	Termination Style	Approval Agency	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Electrical Life	Current Rating (Amps)
NKK Switches JWM11BAA-B	70 °C	-25 °C	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	On-Off	25000 Steps	SPST	Concave (Curved)	Black	0.11 in	Quick Connect Solder	2.8 mm	CSA UL VDE	No Marking	24 mm	15.4 mm	25000 Steps	10 A
NKK Switches JWM11BA1A-A	70 °C	-25 °C	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	On-Off	25000 Steps	SPST	Concave (Curved)	Black	0.11 in	Quick Connect Solder	2.8 mm	CSA UL VDE	O I	24 mm	15.4 mm	25000 Steps	10 A
NKK Switches JWM11BHH-H	70 °C	-25 °C	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	On-Off	25000 Steps	SPST	Concave (Curved)		0.11 in	Quick Connect Solder	2.8 mm	CSA UL VDE	No Marking	24 mm	15.4 mm	25000 Steps	10 A
NKK Switches JWM11BB2B-B	70 °C	-25 °C	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	On-Off	25000 Steps	SPST	Concave (Curved)	Ivory	0.11 in	Quick Connect Solder	2.8 mm	CSA UL VDE	O -	24 mm	15.4 mm	25000 Steps	10 A
NKK Switches JWM11BC1A-A	70 °C	-25 °C	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	On-Off	25000 Steps	SPST	Concave (Curved)	Red	0.11 in	Quick Connect Solder	2.8 mm	CSA UL VDE	O I	24 mm	15.4 mm	25000 Steps	10 A
NKK Switches JWM11BBA-A	70 °C	-25 °C	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	On-Off	25000 Steps	SPST	Concave (Curved)	Ivory	0.11 in	Quick Connect Solder	2.8 mm	CSA UL VDE	No Marking	24 mm	15.4 mm	25000 Steps	10 A
NKK Switches JWM11BC2A-H	70 °C	-25 °C	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	On-Off	25000 Steps	SPST	Concave (Curved)	Red	0.11 in	Quick Connect Solder	2.8 mm	CSA UL VDE	O -	24 mm	15.4 mm	25000 Steps	10 A
NKK Switches JWM11BCA-H	70 °C	-25 °C	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	On-Off	25000 Steps	SPST	Concave (Curved)	Red	0.11 in	Quick Connect Solder	2.8 mm	CSA UL VDE	No Marking	24 mm	15.4 mm	25000 Steps	10 A
NKK Switches JWM11BCA-A	70 °C	-25 °C	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	On-Off	25000 Steps	SPST	Concave (Curved)	Red	0.11 in	Quick Connect Solder	2.8 mm	CSA UL VDE	No Marking	24 mm	15.4 mm	25000 Steps	10 A
NKK Switches JWM11BC1A-H	70 °C	-25 °C	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	On-Off	25000 Steps	SPST	Concave (Curved)	Red	0.11 in	Quick Connect Solder	2.8 mm	CSA UL VDE	O I	24 mm	15.4 mm	25000 Steps	10 A
