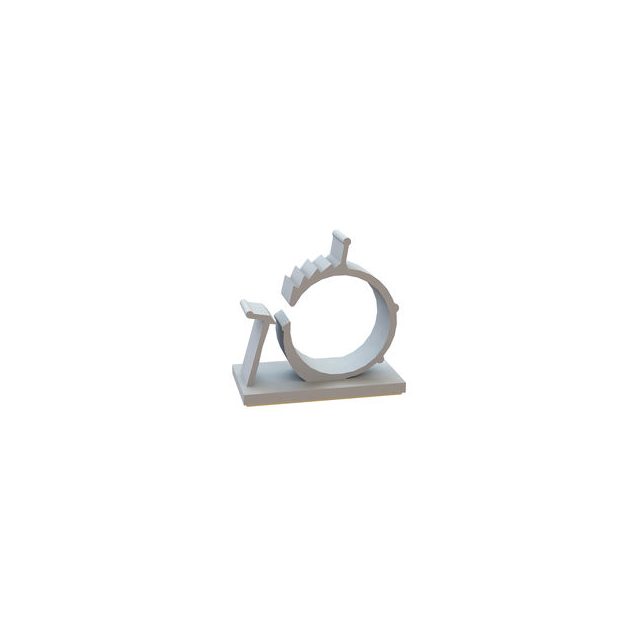

22AAWC830930

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED CABLE CLAMP, 23.7 MM, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 44.5 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

22AAWC830930

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED CABLE CLAMP, 23.7 MM, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 44.5 MM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	22AAWC830930

Color	Black
Length	44.45 mm
Length	1.75 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Adhesive
Opening Size [Max]	0.935 in
Opening Size [Max]	23.75 mm
Opening Size [Min]	0.755 in
Opening Size [Min]	19.18 mm
Type	C-Type, Clip
Type Attributes	Locking, Round
Width	25.4 mm
Width [x]	1 in

22AAWC Series

Part	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Mounting Type	Type	Material Flammability Rating	Type Attributes	Color	Material	Length	Length	Width	Width [x]
Essentra Access Solutions 22AAWC830930	0.755 in	0.935 in	19.18 mm	23.75 mm	Adhesive	C-Type Clip	UL94 V-2	Locking Round	Black	Polyamide (PA66) Nylon 6/6	44.45 mm	1.75 in	25.4 mm	1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.16
		10	$ 1.01
		25	$ 0.97
		50	$ 0.95
		100	$ 0.90
		250	$ 0.82
		500	$ 0.76
Newark	Each	1	$ 1.22
		25000	$ 1.09

Description

General part information

22AAWC Series

Adhesive mount adjustable cable clamp has a ratcheting feature to hold and lock bundles securely. This clamps can be reopened for routing changes. Easily installed with the adhesive base.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
