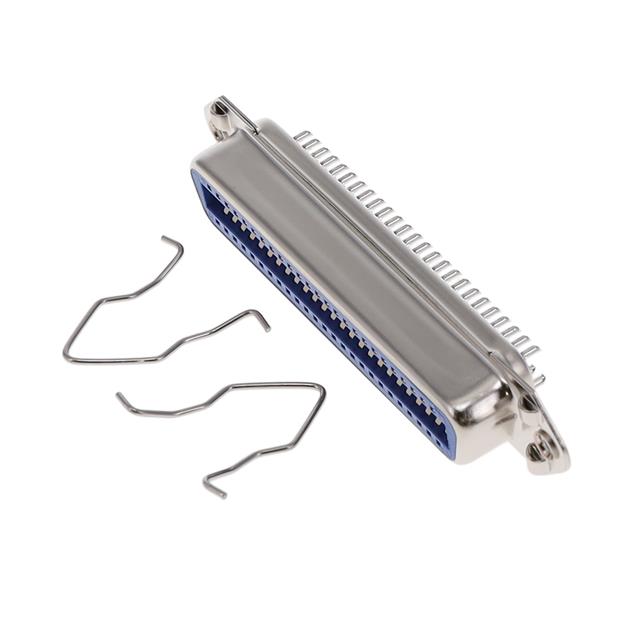

111-050-203L001

Active

NorComp Inc.

I/O CONNECTOR, 50 CONTACTS, RECEPTACLE, SCSI, SOLDER, 111 SERIES, PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

111-050-203L001

Active

NorComp Inc.

I/O CONNECTOR, 50 CONTACTS, RECEPTACLE, SCSI, SOLDER, 111 SERIES, PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	111-050-203L001	111-050 Series

Connector Style	Outer Shroud Contacts	Center Strip Contacts, Outer Shroud Contacts
Connector Type	Receptacle	Plug, Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	50	50
Number of Rows	2	2
Type	SCSI	SCSI

111-050 Series

I/O CONNECTOR, 50 CONTACTS, PLUG, SCSI, SOLDER, 111 SERIES, PANEL MOUNT

Part	Connector Style	Number of Rows	Connector Type	Contact Finish Thickness	Number of Positions	Mounting Type	Contact Finish	Type	Flange Feature
NorComp Inc. 111-050-103L001	Center Strip Contacts	2	Plug	Flash	50	Free Hanging (In-Line)	Gold	SCSI	Housing/Shell (Unthreaded)
NorComp Inc. 111-050-203L001	Outer Shroud Contacts	2	Receptacle	Flash	50	Free Hanging (In-Line)	Gold	SCSI	Housing/Shell (Unthreaded)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.65
		10	$ 4.21
		30	$ 3.97
		60	$ 3.88
		90	$ 3.68
		240	$ 3.41
Newark	Each	500	$ 4.88
		1000	$ 4.17

Description

General part information

111-050 Series

The 111 series 0.085-inch Ribbon Type Connector with Dip solder/solder cup. It has nickel-plated steel shell with copper alloy contacts and a glass-filled thermoplastic insulator.

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet

3D Product Image EN

Datasheet
