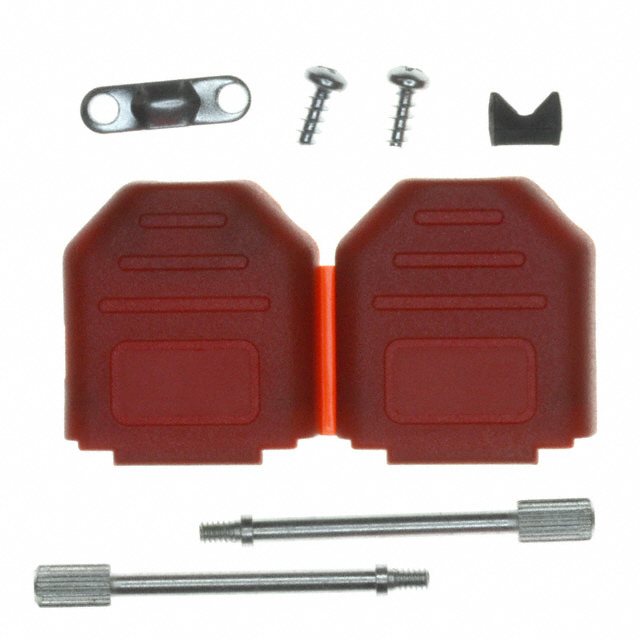

972-009-01SR061

Active

MH Connectors

D SUB BACKSHELL, ARMOR 972 SERIES, DE, 180°, NYLON 6.6 (POLYAMIDE 6.6) BODY

Search across all available documentation for this part.

Active

MH Connectors

D SUB BACKSHELL, ARMOR 972 SERIES, DE, 180°, NYLON 6.6 (POLYAMIDE 6.6) BODY

Technical Specifications

Parameters and characteristics for this part

Specification	972-009-01SR061

Accessory Type	Hinged Backshell
Cable Exit	180 °
Cable Type	Round
Color	Red
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Material	Polyamide (PA66), Nylon 6/6
Number of Positions	9
Primary Material	Plastic
Shielding	Unshielded

Part	Accessory Type	Color	Compatible D-Sub Size	Cable Exit	Cable Type	Number of Positions	Hardware	Compatible Shell Size	Features	Primary Material	Shielding	Material
MH Connectors 972-009-01SR071	Hinged Backshell	Blue	9pos HD15pos	180 °	Round	9	Assembly Hardware Strain Relief	E	Mating Screws 4-40	Plastic	Unshielded	Polyamide (PA66) Nylon 6/6
MH Connectors 972-009-01SR031	Hinged Backshell	Gray	9pos HD15pos	180 °	Round	9	Assembly Hardware Strain Relief	E	Mating Screws 4-40	Plastic	Unshielded	Polyamide (PA66) Nylon 6/6
MH Connectors 972-009-01SR061	Hinged Backshell	Red	9pos HD15pos	180 °	Round	9	Assembly Hardware Strain Relief	E	Mating Screws 4-40	Plastic	Unshielded	Polyamide (PA66) Nylon 6/6
MH Connectors 972-009-01SR041	Hinged Backshell	Green	9pos HD15pos	180 °	Round	9	Assembly Hardware Strain Relief	E	Mating Screws 4-40	Plastic	Unshielded	Polyamide (PA66) Nylon 6/6
MH Connectors 972-009-01SR081	Hinged Backshell	Yellow	9pos HD15pos	180 °	Round	9	Assembly Hardware Strain Relief	E	Mating Screws 4-40	Plastic	Unshielded	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Hinged Backshell Connector Red 180° Unshielded
