ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .012-.017 PRESSFIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPin Receptacles (metric)
4993-0-15-15-10-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .012-.017 PRESSFIT
Deep-Dive with AI
DocumentsPin Receptacles (metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 4993-0-15-15-10-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.017 in |
| Accepts Pin Diameter [Max] | 0.43 mm |
| Accepts Pin Diameter [Min] | 0.3 mm |
| Accepts Pin Diameter [Min] | 0.012 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.4 mm |
| Flange Diameter [diameter] | 0.055 in |
| Length - Overall [x] | 3.94 mm |
| Length - Overall [x] | 0.155 " |
| Mounting Hole Diameter | 1.12 mm, 1.04 mm |
| Mounting Hole Diameter [Max] | 0.044 in |
| Mounting Hole Diameter [Min] | 0.041 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.028 in |
| Pin Hole Diameter [diameter] | 0.71 mm |
| Socket Depth | 2.54 mm |
| Socket Depth | 0.1 " |
| Tail Type | No Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.32 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.15 | |||
Description
General part information
4993-0 Series

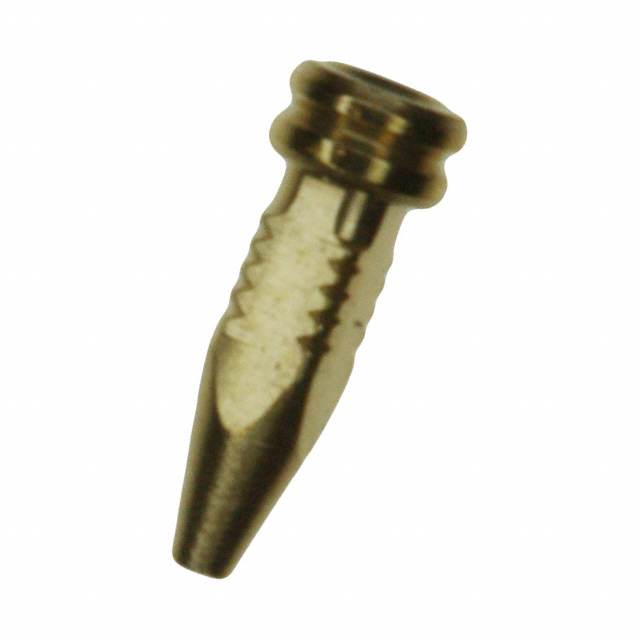

Pin Receptacle Connector 0.012" ~ 0.017" (0.30mm ~ 0.43mm) No Tail Press-Fit
