000-78750

Active

AMPHENOL RF

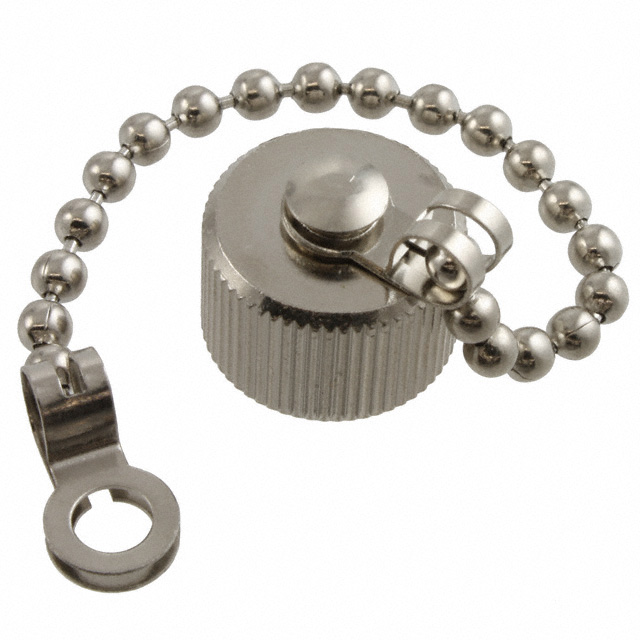

CONN CAP (COVER) FOR TNC JACKS

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN CAP (COVER) FOR TNC JACKS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cap (Cover) For TNC Jacks

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	000-78750	000-78 Series

Accessory Type	Cap (Cover)	Cap (Cover)
Adapter Series	-	N to TNC
Adapter Type	-	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Silver
Center Gender	-	Female to Female
Color	Silver	Silver
Connector Style	TNC	TNC
Conversion Type	-	Between Series
Convert From (Adapter End)	-	N Jack, Female Socket
Convert To (Adapter End)	-	Female Socket, TNC Jack
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Features	Chain	Chain
For Use With/Related Products	TNC Jacks	TNC Jacks, TNC Plugs
Frequency - Max	-	11 GHz
Impedance	-	50 Ohms
Operating Temperature	-	-65 ░C
Operating Temperature	-	165 °C
Style	-	Straight

CONN ADAPT N JACK TO TNC JACK

Part	Frequency - Max [Max]	Center Contact Plating	Body Finish	Impedance	Convert From (Adapter End)	Convert To (Adapter End)	Adapter Type	Dielectric Material	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Conversion Type	Body Material	Style	Center Contact Material	Features	Color	Connector Style	Accessory Type	For Use With/Related Products
AMPHENOL RF 000-78825	11 GHz	Silver	Nickel	50 Ohms	Female Socket, N Jack	Female Socket, TNC Jack	Jack to Jack	Polytetrafluoroethylene (PTFE)	Female to Female	-65 ░C	165 °C	N to TNC	Between Series	Brass	Straight	Beryllium Copper
AMPHENOL RF 000-78750-RFX			Nickel											Brass			Chain	Silver	TNC	Cap (Cover)	TNC Jacks
AMPHENOL RF 000-78400			Nickel											Brass				Silver	TNC	Cap (Cover)	TNC Plugs
AMPHENOL RF 000-78750			Nickel											Brass			Chain	Silver	TNC	Cap (Cover)	TNC Jacks
