095-909-186-018
ActiveAmphenol RF

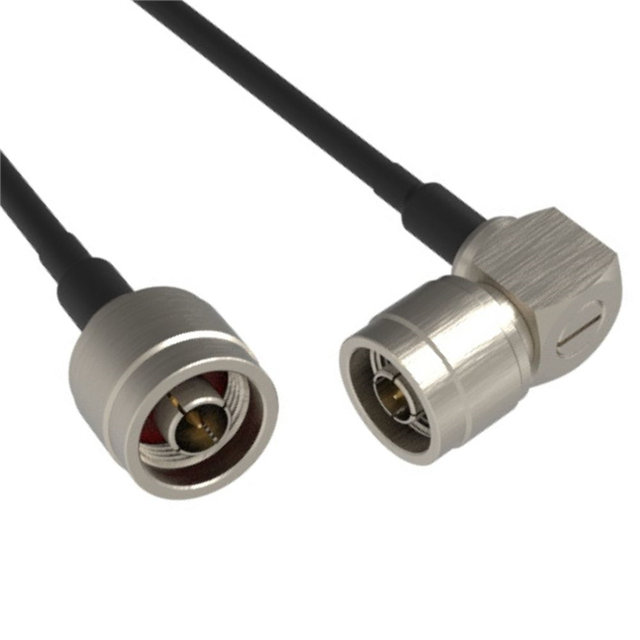

CABLE ASSEMBLY LMR-240 0.457M TYPE N TO TYPE N PL-PL BAG
Deep-Dive with AI
Search across all available documentation for this part.
095-909-186-018
ActiveAmphenol RF
CABLE ASSEMBLY LMR-240 0.457M TYPE N TO TYPE N PL-PL BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-909-186-018 |
|---|---|
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR 240 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 457.2 mm |
| Length [x] | 457.2 mm |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style | N-Type to N-Type |
095-909 Series
...
| Part | Frequency - Max [Max] | 2nd Contact Gender | 1st Connector Mounting Type | Color | Length | Length | Cable Impedance | Overall Impedance | Features | 1st Connector Mounting Feature | Cable Type | 2nd Connector | Style | 1st Connector | 2nd Connector Mounting Type | Ingress Protection | 1st Contact Gender | Length | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 6000 MHz | Male | Panel Mount | Black | 24 " | 609.6 mm | 50 Ohms | 50 Ohms | Shielded | Bulkhead - Front Side Nut | LMR 400 | N-Type Plug Right Angle | N-Type to N-Type | N-Type Jack | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Female | |||||
Amphenol RF | 6000 MHz | Male | Panel Mount | Black | 22.86 m 900 (22.9m) | 50 Ohms | 50 Ohms | Shielded | Bulkhead - Front Side Nut | LMR 400 | N-Type Plug Right Angle | N-Type to N-Type | N-Type Jack | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Female | ||||||
Amphenol RF | 6000 MHz | Male | Panel Mount | Black | 20 ft | 6.1 m | 50 Ohms | 50 Ohms | Shielded | Bulkhead - Front Side Nut | LMR 400 | N-Type Plug | N-Type to N-Type | N-Type Jack | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Female | 20 ft | ||||
Amphenol RF | 6000 MHz | Male | Panel Mount | Black | 12 " | 304.8 mm | 50 Ohms | 50 Ohms | Shielded | Bulkhead - Front Side Nut | LMR 400 | N-Type Plug | N-Type to N-Type | N-Type Jack | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Female | |||||
Amphenol RF | 6000 MHz | Male | Panel Mount | Black | 50 ft | 15.2 m | 50 Ohms | 50 Ohms | Shielded | Bulkhead - Front Side Nut | LMR 400 | N-Type Plug Right Angle | N-Type to N-Type | N-Type Jack | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Female | 50 ft | ||||
Amphenol RF | 6000 MHz | Male | Free Hanging (In-Line) | Black | 50 Ohms | 50 Ohms | Shielded | LMR 240 | N-Type Plug Right Angle | N-Type to N-Type | Free Hanging (In-Line) | Male | 457.2 mm | 457.2 mm | -65 ░C | 165 °C | ||||||
Amphenol RF | 6000 MHz | Male | Panel Mount | Black | 36 in | 91.44 cm | 50 Ohms | 50 Ohms | Shielded | Bulkhead - Front Side Nut | LMR 400 | N-Type Plug | N-Type to N-Type | N-Type Jack | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Female | |||||
Amphenol RF | 6000 MHz | Male | Panel Mount | Black | 108 in | 2.7 m | 50 Ohms | 50 Ohms | Shielded | Bulkhead - Front Side Nut | LMR 400 | N-Type Plug | N-Type to N-Type | N-Type Jack | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Female | 9 ft | ||||
Amphenol RF | 6000 MHz | Male | Panel Mount | Black | 48 in | 1200 mm | 50 Ohms | 50 Ohms | Shielded | Bulkhead - Front Side Nut | LMR 400 | N-Type Plug | N-Type to N-Type | N-Type Jack | Free Hanging (In-Line) | IP67 - Dust Tight Waterproof | Female | 4 ft | ||||
Amphenol RF | 6000 MHz | Male | Free Hanging (In-Line) | Black | 48 in | 1200 mm | 50 Ohms | 50 Ohms | Shielded | LMR 400 | N-Type Plug Right Angle | RP-TNC to N-Type | RP-TNC Plug | Free Hanging (In-Line) | Female | 4 ft | -65 ░C | 165 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 25 | $ 47.43 | |
Description
General part information
095-909 Series
Cable Assembly Coaxial N-Type to N-Type LMR 240 18.00" (457.20mm)
Documents
Technical documentation and resources
No documents available
