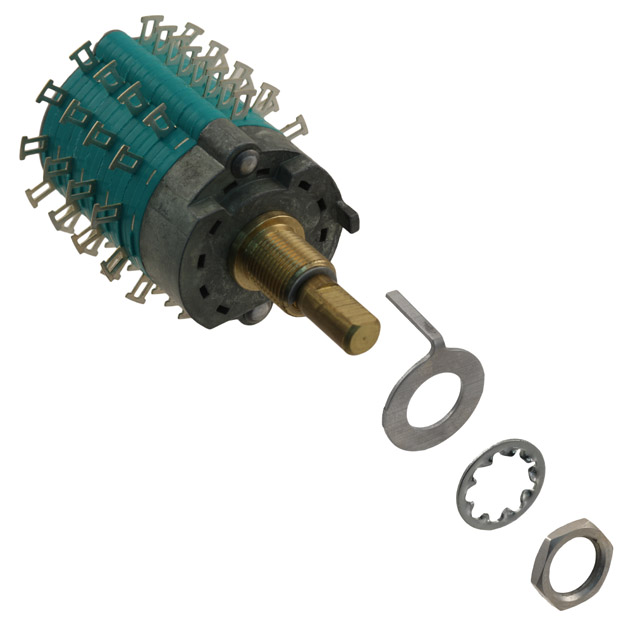

C4D0806N-A

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 300MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 300MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C4D0806N-A

Actuator Length [x]	0.5 in
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	300 mA, 500 mA
Depth Behind Panel [z]	41.76 mm
Index Stops	Adjustable
Number of Decks	4
Number of Poles per Deck	2
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Contact Material	Panel Cutout Dimensions [diameter]	Contact Finish	Number of Decks	Depth Behind Panel [z]	Angle of Throw	Actuator Type [diameter]	Actuator Type	Voltage Rating - DC	Actuator Length [x]	Circuit per Deck [custom]	Voltage Rating - AC	Contact Timing	Number of Positions [Max]	Number of Positions [Min]	Termination Style	Current Rating (Amps)	Index Stops	Number of Poles per Deck
ELECTROSWITCH C4D0806N-A	Brass	9.78 mm	Silver	4	41.76 mm	30 °	6.35 mm	Flatted	28 V	0.5 in	DP6T	125 V	Non-Shorting	6	2	Solder Lug	300 mA 500 mA	Adjustable	2
