AAA3MBAUZ

Active

Switchcraft Inc.

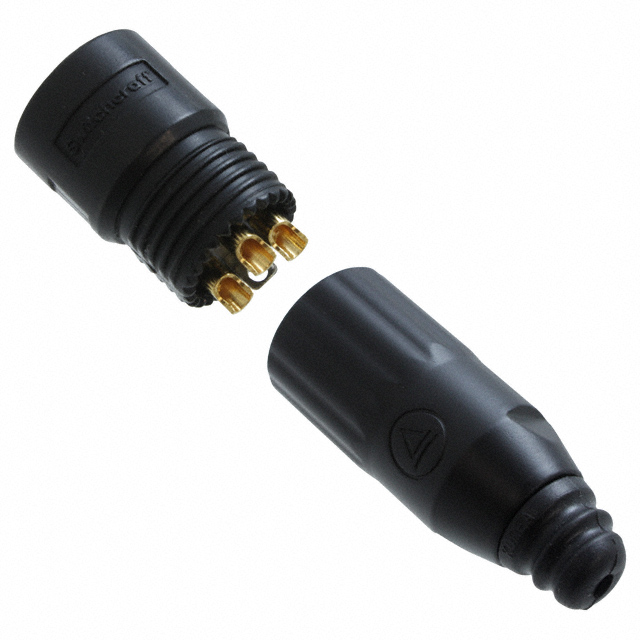

CONN RCPT MALE XLR 3P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAA3MBAUZ

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.53
		10	$ 5.91
		100	$ 5.17
		1000	$ 4.20

Description

General part information

AAA3MB Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AAA3MBAUZ	AAA3MB Series

Applications	Audio, Industrial, Instrumentation, Medical	Audio, Industrial, Instrumentation, Medical, Audio, Instrumentation
Backshell Material, Plating	Chrome, Zinc	Chrome, Zinc, Thermoplastic
Cable Opening	-	0.15 in
Cable Opening	-	3.81 mm
Cable Opening	-	7.24 mm
Cable Opening	-	0.285 in
Cable Opening	-	0.205 - 5.21 mm
Cable Opening	-	0.145 - 3.68 in
Cable Opening [diameter]	2.54 mm, 5.59 mm	2.54 - 5.59 mm
Cable Opening [diameter]	0.1 in, 0.22 in	0.1 - 0.22 in
Color	Black	Black, Green
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Silver, Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	15 A	15 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp	Backshell, Strain Relief, Ground, Cable Clamp
Ingress Protection	-	IP66
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature	-	65 °C
Operating Temperature	-	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Black Painted
Shell Material	Zinc Alloy	Zinc Alloy
Shell Size - Insert	XLR	XLR
Shielding	Shielded	Shielded
Voltage Rating	125 VAC	125 VAC

AAA3MB Series

CONN RCPT MALE XLR 3P SOLDER CUP

Part	Shell Size - Insert	Shielding	Applications	Fastening Type	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Features	Contact Material	Shell Finish	Voltage Rating	Connector Type	Insert Material	Mounting Type	Current Rating (Amps)	Contact Finish - Mating	Backshell Material, Plating	Orientation	Shell Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Ingress Protection	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Switchcraft Inc. AAA3MBZ	XLR	Shielded	Audio, Industrial, Instrumentation, Medical	Latch Lock	Metal	2.54 mm, 5.59 mm	0.1 in, 0.22 in	Backshell, Cable Clamp, Ground, Strain Relief	Copper Alloy	Chrome	125 VAC	Male Pins, Receptacle	Thermoplastic	Free Hanging (In-Line)	15 A	Silver	Chrome, Zinc	Keyed	Zinc Alloy	Black
Switchcraft Inc. AAA3MBZH	XLR	Shielded	Audio, Instrumentation	Latch Lock	Metal			Backshell, Cable Clamp, Ground, Strain Relief	Copper Alloy	Chrome		Male Pins, Receptacle	Thermoplastic	Free Hanging (In-Line)		Silver	Chrome, Zinc	Keyed	Zinc Alloy	Black	65 °C	-40 °C	0.15 in	3.81 mm	7.24 mm	0.285 in	IP66
Switchcraft Inc. AAA3MBAUZ	XLR	Shielded	Audio, Industrial, Instrumentation, Medical	Latch Lock	Metal	2.54 mm, 5.59 mm	0.1 in, 0.22 in	Backshell, Cable Clamp, Ground, Strain Relief	Copper Alloy	Chrome	125 VAC	Male Pins, Receptacle	Thermoplastic	Free Hanging (In-Line)	15 A	Gold	Chrome, Zinc	Keyed	Zinc Alloy	Black
Switchcraft Inc. AAA3MBYYLP	XLR	Shielded	Audio, Instrumentation	Latch Lock	Metal			Backshell, Ground, Strain Relief	Copper Alloy	Black Painted		Male Pins, Receptacle	Thermoplastic	Free Hanging (In-Line)		Silver	Thermoplastic	Keyed	Zinc Alloy									0.205 in, 5.21 mm	0.145 in, 3.68 mm
Switchcraft Inc. AAA3MBAUZH	XLR	Shielded	Audio, Instrumentation	Latch Lock	Metal			Backshell, Cable Clamp, Ground, Strain Relief	Copper Alloy	Chrome		Male Pins, Receptacle	Thermoplastic	Free Hanging (In-Line)		Gold	Chrome, Zinc	Keyed	Zinc Alloy	Black	65 °C	-40 °C	0.15 in	3.81 mm	7.24 mm	0.285 in	IP66
Switchcraft Inc. AAA3MBGGLP	XLR	Shielded	Audio, Instrumentation	Latch Lock	Metal			Backshell, Ground, Strain Relief	Copper Alloy	Black Painted		Male Pins, Receptacle	Thermoplastic	Free Hanging (In-Line)		Silver	Thermoplastic	Keyed	Zinc Alloy	Black, Green								0.205 in, 5.21 mm	0.145 in, 3.68 mm
Switchcraft Inc. AAA3MBLP	XLR	Shielded	Audio, Instrumentation	Latch Lock	Metal			Backshell, Ground, Strain Relief	Copper Alloy	Black Painted		Male Pins, Receptacle	Thermoplastic	Free Hanging (In-Line)		Silver	Thermoplastic	Keyed	Zinc Alloy	Black								0.205 in, 5.21 mm	0.145 in, 3.68 mm
