112974

Active

Amphenol RF

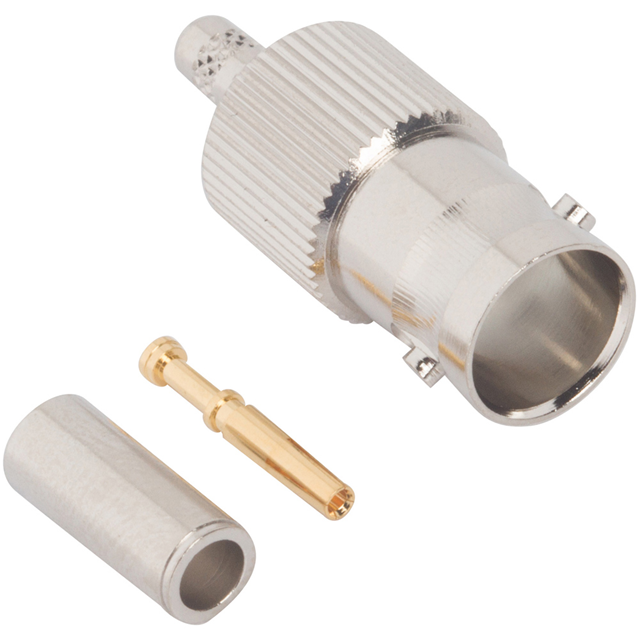

CONN BNC JACK STR 75 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

112974

Active

Amphenol RF

CONN BNC JACK STR 75 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112974

Body Finish	Nickel
Body Material	Brass
Cable Group	AT&T 735, 735A, Belden 735A1
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

1129 Series

Part	Mounting Type	Voltage Rating	Mating Cycles	Center Contact Material	Dielectric Material	Body Finish	Body Material	Includes	Center Contact Plating	Connector Type	Connector Style	Housing Color	Impedance	Fastening Type	Shield Termination	Frequency - Max [Max]	Cable Group	Number of Ports	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 112981	Free Hanging (In-Line)	500 V	500	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Brass	1 Connector 1 Contact 1 Ferrule	Gold	Male Pin Plug	BNC	Silver	75 Ohms	Bayonet Lock	Crimp	4 GHz	7855A Belden 1794A Gepco VHD 7000	1	Crimp
Amphenol RF 112954	Free Hanging (In-Line)	500 V	500	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Brass	1 Connector 1 Contact 1 Ferrule 1 Sleeve	Gold	Male Pin Plug	BNC	Silver	75 Ohms	Bayonet Lock	Crimp	4 GHz	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	1	Crimp
Amphenol RF 112957	Free Hanging (In-Line)	500 V	500	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Brass	1 Connector 1 Contact 1 Ferrule	Gold	Male Pin Plug	BNC	Silver	75 Ohms	Bayonet Lock	Crimp	4 GHz	RG-6 Double Braid Belden 1694A	1	Crimp
Amphenol RF 112955	Free Hanging (In-Line)	500 V	500	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Brass	1 Connector 1 Contact 1 Ferrule	Gold	Male Pin Plug	BNC	Silver	75 Ohms	Bayonet Lock	Crimp	4 GHz	180 180A 180B 1865A 195 Belden 1855 RG-122	1	Crimp
Amphenol RF 112975	Free Hanging (In-Line)	500 V	500	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Brass	1 Connector 1 Contact 1 Ferrule	Gold	Male Pin Plug	BNC	Silver	75 Ohms	Bayonet Lock	Crimp	4 GHz	82108 9104 Belden 1506 RG-59 Plenum	1	Crimp
Amphenol RF 112973	Free Hanging (In-Line)	500 V	500	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Nickel	Brass	1 Connector 1 Contact 1 Ferrule	Gold	Female Socket Jack	BNC	Silver	75 Ohms	Bayonet Lock	Crimp	4 GHz	734A AT&T 734 Belden 1505A	1	Crimp
Amphenol RF 112974	Free Hanging (In-Line)	500 V	500	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	Nickel	Brass	1 Connector 1 Contact 1 Ferrule	Gold	Female Socket Jack	BNC	Silver	75 Ohms	Bayonet Lock	Crimp	4 GHz	735A AT&T 735 Belden 735A1	1	Crimp
Amphenol RF 112958	Free Hanging (In-Line)	500 V	500	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Brass	1 Connector 1 Contact 1 Ferrule	Gold	Male Pin Plug	BNC	Silver	75 Ohms	Bayonet Lock	Crimp	4 GHz	Belden 1695A RG-6 Plenum	1	Crimp
Amphenol RF 112996	Free Hanging (In-Line)		500	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Brass	1 Connector 1 Contact 1 Ferrule 1 Spacer	Gold	Male Pin Plug	BNC	Silver	50 Ohms	Bayonet Lock	Crimp	6000 MHz	Belden 9913 Belden 9914 LMR-400	1	Crimp	-65 ░C	165 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 3.10
		10	$ 2.82
		25	$ 2.67
		50	$ 2.61
		100	$ 2.48
		300	$ 2.18

Description

General part information

1129 Series

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
