10350-A200-00

Active

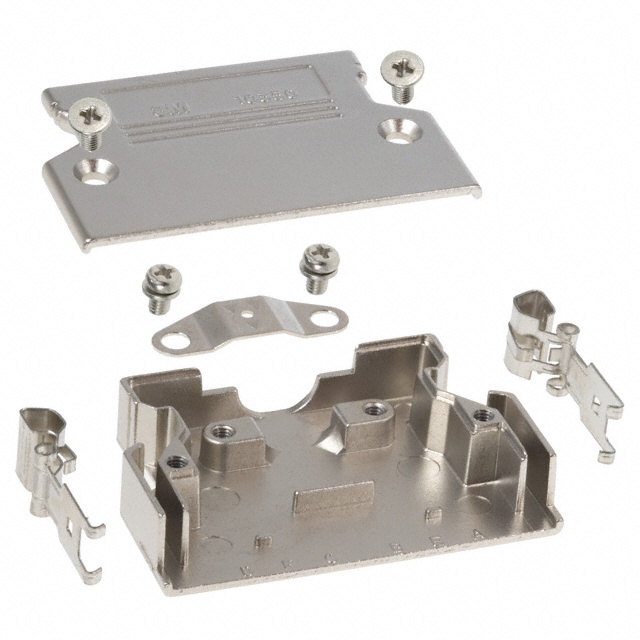

CONN BACKSHELL 50POS 180DEG SHLD

Search across all available documentation for this part.

Active

CONN BACKSHELL 50POS 180DEG SHLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Two Piece Backshell Connector Silver 180° Shielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	10350-A200-00	10350 Series

Accessory Type	Two Piece Backshell	Two Piece Backshell and Cover, Two Piece Backshell
Cable Exit	180 °	60 - 180 °
Cable Type	Round	Round, Flat
Color	Silver	Beige, Silver, Black, Gray, Gray, Medium
Features	Latch Lock	Latch Lock, Mating Screws 4-40
Hardware	-	Assembly Hardware, Gasket, Strain Relief
Material	Zinc Alloy, Metal	Aluminum, Metal, Zinc, Zinc Alloy, Polybutylene Terephthalate (PBT), Glass Filled, Metal
Material	-	Plastic, Steel
Material	-	Metal
Number of Positions	50	50
Plating	Nickel	Nickel
Primary Material	Metal	Metal, Plastic
Shielding	Shielded	Shielded, Unshielded

JE150187431 10350-3280-000-1=50/MDR/PLSHELL/2PC/BEIGE ROHS COMPLIANT: YES

Part	Number of Positions	Cable Type	Primary Material	Features	Color	Material [custom]	Material [custom]	Accessory Type	Cable Exit	Shielding	Material	Plating	Hardware
3M 10350-3280-000-1	50	Round	Metal	Latch Lock	Beige	Plastic, Steel	Metal	Two Piece Backshell and Cover	180 °	Shielded
3M 10350-32J0-000	50	Round	Metal	Mating Screws 4-40	Beige	Plastic, Steel	Metal	Two Piece Backshell and Cover	180 °	Shielded
3M 10350-A200-60	50	Round	Metal	Latch Lock	Silver			Two Piece Backshell	180 °	Shielded	Aluminum	Nickel
3M 10350-1230-00	50	Flat	Metal	Latch Lock	Silver			Two Piece Backshell	180 °	Shielded	Metal, Zinc	Nickel	Assembly Hardware, Gasket
3M 10350-C500-00	50	Round	Metal	Latch Lock	Silver			Two Piece Backshell	60 °	Shielded	Zinc Alloy	Nickel
3M 10350-52A0-008	50	Round	Plastic	Latch Lock	Black			Two Piece Backshell	180 °	Unshielded	Polybutylene Terephthalate (PBT), Glass Filled
3M 10350-32J0-003	50	Round	Metal	Mating Screws 4-40	Gray	Plastic, Steel	Metal	Two Piece Backshell and Cover	180 °	Shielded
3M 10350-C200-00	50	Round	Metal	Latch Lock	Silver			Two Piece Backshell	180 °	Shielded	Zinc Alloy	Nickel
3M 10350-3210-006	50	Round	Metal	Latch Lock	Black	Plastic, Steel	Metal	Two Piece Backshell and Cover	180 °	Shielded
3M 10350-A200-00	50	Round	Metal	Latch Lock	Silver			Two Piece Backshell	180 °	Shielded	Metal, Zinc Alloy	Nickel
