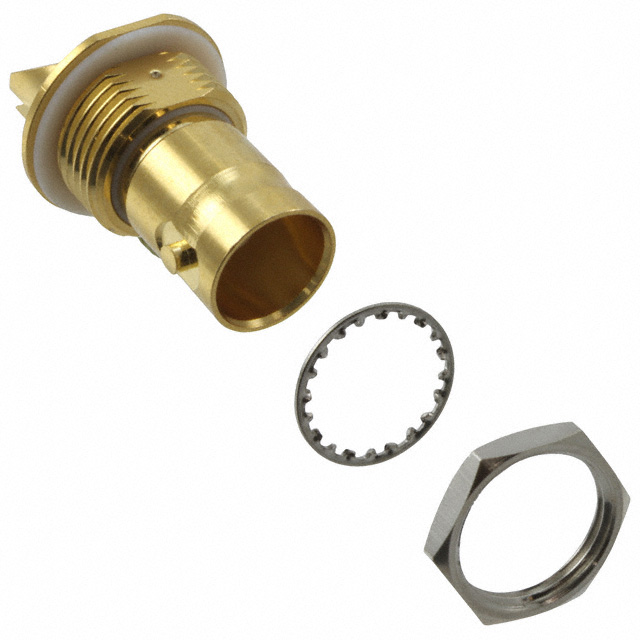

112806-75

Active

Amphenol RF

CONN BNC RCPT STR 75OHM EDGE MNT

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC RCPT STR 75OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	112806-75

Body Finish	Gold
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Isolated
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Panel Mount, End Launch, Board Edge
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Shield Termination	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Connector Type	Fastening Type	Frequency - Max [Max]	Center Contact Material	Center Contact Plating	Impedance	Mounting Feature	Features	Dielectric Material	Voltage Rating	Insertion Loss	Housing Color	Body Material	Includes	Body Finish	Number of Ports	Mating Cycles
Amphenol RF 112806-75	Solder	BNC	-65 ░C	165 °C	Solder	Board Edge End Launch Panel Mount	Female Socket Jack	Bayonet Lock	4 GHz	Phosphor Bronze	Gold	75 Ohms	Bulkhead - Front Side Nut	Isolated	Polytetrafluoroethylene (PTFE)	500 V	0.2 dB	Gold	Brass	1 Connector 1 Lockwasher 1 Nut	Gold	1	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Board Edge, End Launch; Panel Mount Solder
