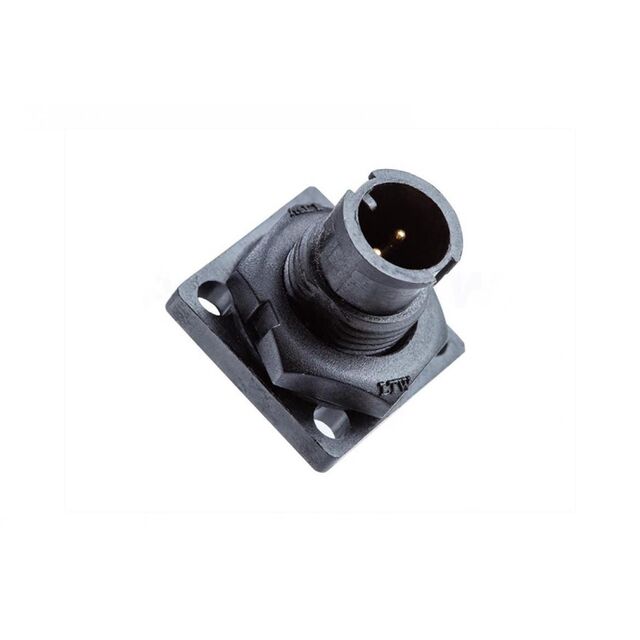

ASU-06PMMS-LS7002

Active

Amphenol LTW

CERES, MINI SIZE, METAL, 2A, 06 PINS, MALE CONNECTOR, MALE CONTACT, SQUARE, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS COMPLIA

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MINI SIZE, METAL, 2A, 06 PINS, MALE CONNECTOR, MALE CONTACT, SQUARE, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS COMPLIA

Technical Specifications

Parameters and characteristics for this part

Specification	ASU-06PMMS-LS7002

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	A
Shielding	Shielded
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Finish - Mating	Voltage Rating	Shell Material	Ingress Protection	Insert Material	Number of Positions	Mounting Type	Termination	Primary Material	Color	Shielding	Shell Size - Insert	Mounting Feature	Current Rating (Amps)	Connector Type	Fastening Type	Orientation
Amphenol LTW ASU-06PMMS-LS7002	Copper Alloy	-40 °C	105 ░C	Nickel	Gold	250 VDC	Zinc Alloy	IP67 - Dust Tight Waterproof	Polyamide (PA) Nylon Glass Filled	6	Panel Mount Through Hole	Solder	Metal	Silver	Shielded	A	Flange	2 A	Male Pins Receptacle	Bayonet Lock	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder
