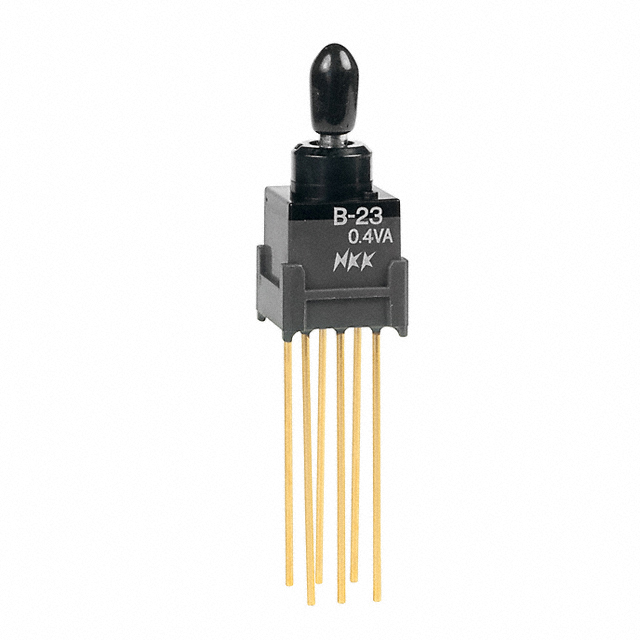

B23JW-JA

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Technical Specifications

Parameters and characteristics for this part

Part	Illumination	Switch Function	Voltage Rating - DC	Actuator Type	Circuit	Bushing Thread	Actuator Length [x]	Features	Mounting Type	Voltage Rating - AC	Actuator Material	Current Rating (Amps)	Termination Style	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]
NKK Switches B23JW-JA	Non-Illuminated	On-Off-On	28 V	Standard Round with Cap	DPDT	Unthreaded	6.3 mm	Black Cap	Through Hole	28 V	Brass Nickel Plated	0.4 VA	Wire Wrap	50000 Cycles	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole
