1828618-2

Active

TE Connectivity Raychem Cable Protection

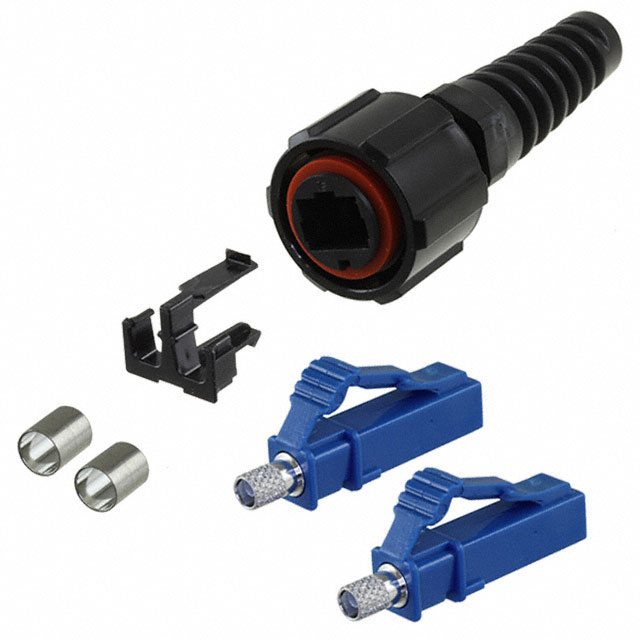

CONN LC SINGLE MODE DUPLEX PL CRIMP ST CABLE MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN LC SINGLE MODE DUPLEX PL CRIMP ST CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	1828618-2

Attenuation - Typ	-8 dB
Body Material	Polyether Imide (PEI)
Boot Color	Black
Cable Diameter [diameter]	7.5 mm
Connector Style	LC
Connector Type	Plug
Fastening Type	Latch Lock
Features	Protective Cap, Strain Relief
Ferrule Material	Zirconia
Fiber Core Diameter [diameter]	9 µm
Housing Color	Blue
Housing Material	Polybutylene Terephthalate (PBT)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mode	Singlemode
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Reflection	-56 dB
Simplex/Duplex	Duplex

Part	Housing Material	Boot Color	Fiber Core Diameter [diameter]	Reflection	Body Material	Simplex/Duplex	Ferrule Material	Fastening Type	Mode	Connector Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Cable Diameter [diameter]	Connector Type	Ingress Protection	Attenuation - Typ	Housing Color	Features
TE Connectivity Raychem Cable Protection 1828618-2	Polybutylene Terephthalate (PBT)	Black	9 µm	-56 dB	Polyether Imide (PEI)	Duplex	Zirconia	Latch Lock	Singlemode	LC	Free Hanging (In-Line)	85 °C	-40 °C	7.5 mm	Plug	IP67 - Dust Tight Waterproof	-8 dB	Blue	Protective Cap Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Singlemode, Plug, FullAXS LC, ODVA LC Connectors
