8059-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

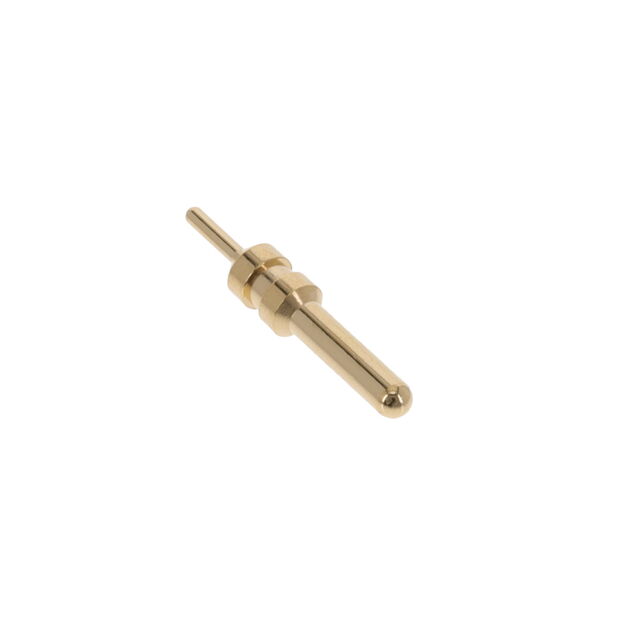

SOLDER MOUNT PCB PIN
Deep-Dive with AI
Search across all available documentation for this part.
8059-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
SOLDER MOUNT PCB PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8059-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.098 in |
| Flange Diameter [diameter] | 2.49 mm |
| Insulation | Non-Insulated |
| Length - Below Flange [x] | 6.86 mm |
| Length - Below Flange [x] | 0.27 in |
| Length - Overall [x] | 13.97 mm |
| Length - Overall [x] | 0.55 " |
| Mounting Hole Diameter [diameter] | 0.86 mm |
| Mounting Hole Diameter [diameter] | 0.034 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Pin Size - Below Flange [diameter] | 0.062 " |
| Pin Size - Below Flange [diameter] | 1.58 mm |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.55 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.30 | |||
Description
General part information
8059-0 Series
PC Pin Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia
