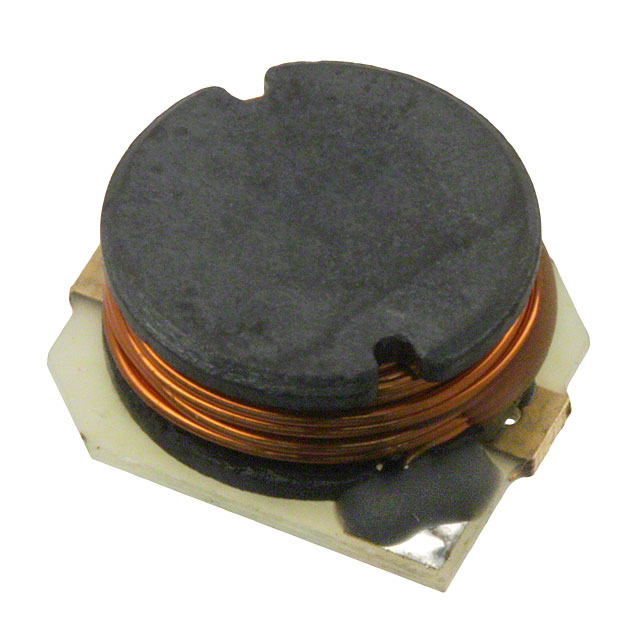

SDR1105-151KL

Active

Bourns Inc.

POWER INDUCTOR (SMD), 150 ΜH, 1.2 A, UNSHIELDED, 2.3 A, SDR1105 SERIES

Search across all available documentation for this part.

Active

Bourns Inc.

POWER INDUCTOR (SMD), 150 ΜH, 1.2 A, UNSHIELDED, 2.3 A, SDR1105 SERIES

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR)	Ratings	Current Rating (Amps)	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Mounting Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Inductance	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	DC Resistance (DCR) [Max]
Bourns Inc. SDR1105-330KL	100 mOhm	AEC-Q200	2.6 A	10 %	11.1 mm	10 mm	0.437 in	0.394 in	Drum Core Wirewound	Surface Mount	Nonstandard	0.197 in	5 mm	Unshielded	33 µH	Ferrite	125 °C	-40 °C	5 A
Bourns Inc. SDR1105-101KL			1.5 A	10 %	11.1 mm	10 mm	0.437 in	0.394 in	Drum Core Wirewound	Surface Mount	Nonstandard	0.197 in	5 mm	Unshielded	100 µH	Ferrite	125 °C	-40 °C	2.8 A
Bourns Inc. SDR1105-151KL			1.2 A	10 %	11.1 mm	10 mm	0.437 in	0.394 in	Drum Core Wirewound	Surface Mount	Nonstandard	0.197 in	5 mm	Unshielded	150 µH	Ferrite	125 °C	-40 °C	2.3 A	500 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 µH Unshielded Drum Core, Wirewound Inductor 1.2 A 500mOhm Max Nonstandard
