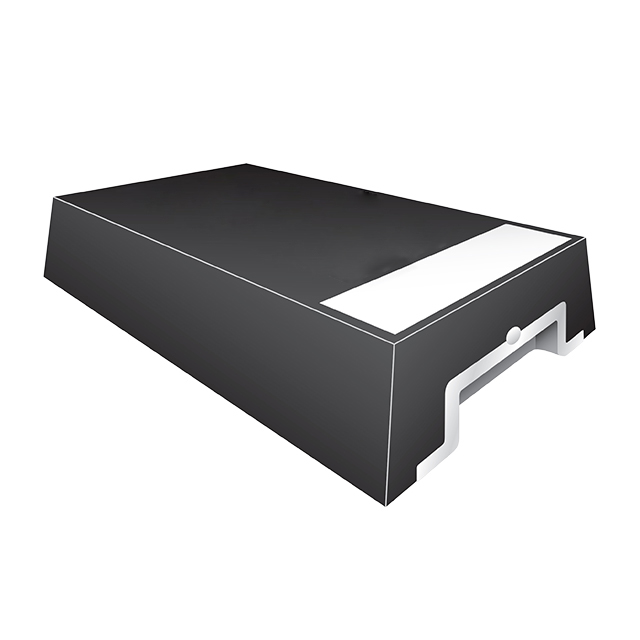

T527I107M006ATE100

Active

KEMET

SURFACE MOUNT TANTALUM CAPACITOR, KO-CAPR, T527 SERIES, 100 F, 20%, 6.3 V, 1206 [3216 METRIC], I ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

SURFACE MOUNT TANTALUM CAPACITOR, KO-CAPR, T527 SERIES, 100 F, 20%, 6.3 V, 1206 [3216 METRIC], I ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	T527I107M006ATE100

Capacitance	100 µF
ESR (Equivalent Series Resistance)	100 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Manufacturer Size Code	I
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	ESR (Equivalent Series Resistance)	Package / Case	Mounting Type	Features	Manufacturer Size Code
KEMET T527I226M010ATE200	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	105 ░C	-55 °C	10 V	Molded	0.039 "	1 mm	22 µF	200 mOhm	1206 (3216 Metric)	Surface Mount	General Purpose	I
KEMET T527I107M006ATE100	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	105 ░C	-55 °C	6.3 V	Molded	0.039 "	1 mm	100 µF	100 mOhm	1206 (3216 Metric)	Surface Mount	General Purpose	I
KEMET T527I476M010ATE200	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	105 ░C	-55 °C	10 V	Molded	0.039 "	1 mm	47 µF	200 mOhm	1206 (3216 Metric)	Surface Mount	General Purpose	I
KEMET T527I476M006ATE200	20 %	0.063 in	1.6 mm	0.126 "	3.2 mm	105 ░C	-55 °C	6.3 V	Molded	0.039 "	1 mm	47 µF	200 mOhm	1206 (3216 Metric)	Surface Mount	General Purpose	I

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF Molded Tantalum Polymer Capacitor 6.3 V 1206 (3216 Metric) 100mOhm @ 100kHz
