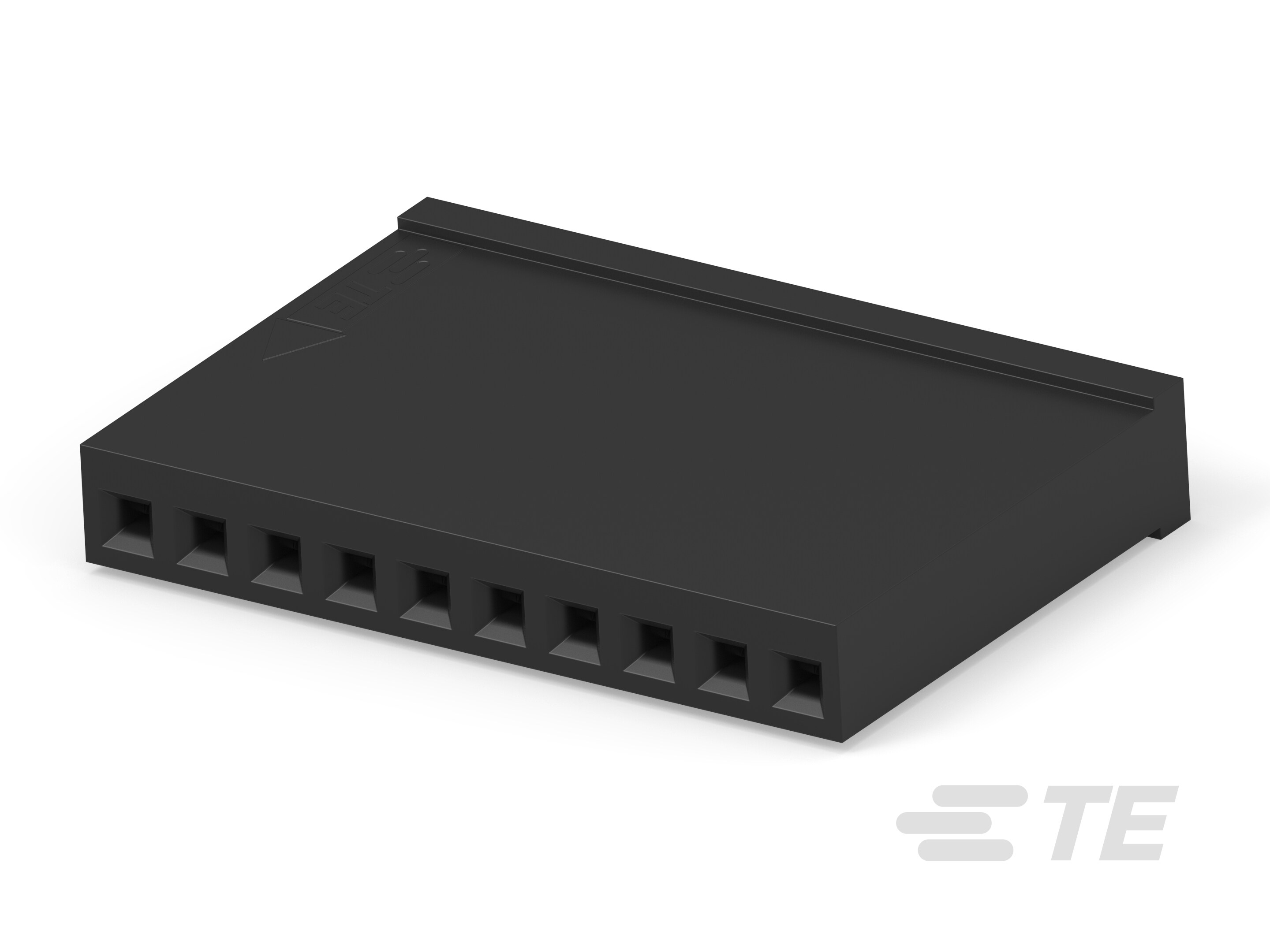

2-87175-1

Active

TE Connectivity Raychem Cable Protection

10 LOCKING CLIP HSG SR MRKD ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-87175-1

Active

TE Connectivity Raychem Cable Protection

10 LOCKING CLIP HSG SR MRKD ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-87175-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyester, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

AMPMODU LOCKING CLIP Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Contact Type	Mounting Type	Number of Positions	Note	Color	Insulation Material	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Row Spacing [x]	Row Spacing	Number of Positions
TE Connectivity Raychem Cable Protection 3-87175-0	-65 ░C	105 ░C	Crimp	Female Socket	Free Hanging (In-Line)	14	Contacts Not Included	Black	Polyester Glass Filled	2.54 mm	0.1 in	1	Receptacle
TE Connectivity Raychem Cable Protection 1-87175-0	-65 ░C	105 ░C	Crimp	Female Socket	Free Hanging (In-Line)	4	Contacts Not Included	Black	Polyester Glass Filled	2.54 mm	0.1 in	1	Receptacle
TE Connectivity Raychem Cable Protection 87175-8	-65 ░C	105 ░C	Crimp	Female Socket	Free Hanging (In-Line)		Contacts Not Included	Black	Polyester Glass Filled	2.54 mm	0.1 in	1	Receptacle
TE Connectivity Raychem Cable Protection 1-87175-4	-65 ░C	105 ░C	Crimp	Female Socket	Free Hanging (In-Line)	6	Contacts Not Included	Black	Polyester Glass Filled	2.54 mm	0.1 in	1	Receptacle
TE Connectivity Raychem Cable Protection 926209-8	-65 ░C	105 ░C	Crimp	Female Socket	Free Hanging (In-Line)		Contacts Not Included	Black	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	Receptacle	0.1 in	2.54 mm	16
TE Connectivity Raychem Cable Protection 87175-2	-65 ░C	105 ░C	Crimp	Female Socket	Free Hanging (In-Line)	1	Contacts Not Included	Black	Polyester Glass Filled	2.54 mm	0.1 in	1	Receptacle
TE Connectivity Raychem Cable Protection 1-926657-0	-65 ░C	105 ░C	Crimp	Female Socket	Free Hanging (In-Line)	10	Contacts Not Included	Black	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	1	Receptacle
TE Connectivity Raychem Cable Protection 926209-4	-65 ░C	105 ░C	Crimp	Female Socket	Free Hanging (In-Line)	8	Contacts Not Included	Black	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	Receptacle	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection 926209-2	-65 ░C	105 ░C	Crimp	Female Socket	Free Hanging (In-Line)	4	Contacts Not Included	Black	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	2	Receptacle	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection 2-87175-1	-65 ░C	105 ░C	Crimp	Female Socket	Free Hanging (In-Line)	10	Contacts Not Included	Black	Polyester Glass Filled	2.54 mm	0.1 in	1	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.87
Newark	Each	500	$ 3.03
		1000	$ 2.73
		2500	$ 2.63

Description

General part information

AMPMODU LOCKING CLIP Series

10 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
