000-35025-RFX

Active

AMPHENOL RF

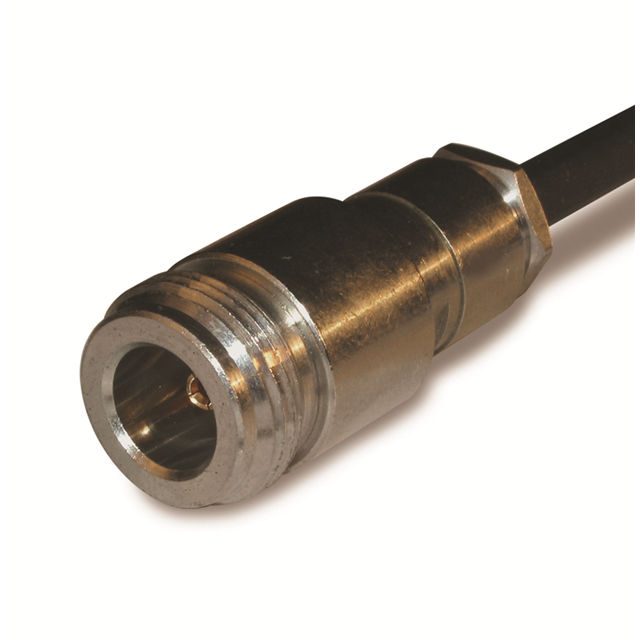

CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN N JACK STR 50 OHM SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 19.13

General part information

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	000-35025-RFX	000-35 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Phosphor Bronze	Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Silver, Gold
Connector Style	N Type	BNC, N Type
Connector Type	Female Socket, Jack	Male Pin, Plug, Female Socket, Jack
Contact Finish	-	Gold
Contact Material	-	Brass
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	-	Chain
Frequency - Max [Max]	11 GHz	2 - 11 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Includes	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging, Cap, Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp

CONN TERMINATOR PLUG BNC 75OHM

Part	Connector Type	Body Material	Body Finish	Connector Style	Features	Contact Finish	Frequency - Max [Max]	Mounting Type	Contact Material	Impedance	Dielectric Material	Number of Ports	Shield Termination	Mating Cycles	Contact Termination	Center Contact Material	Housing Color	Center Contact Plating	Cable Group	Includes	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL RF 000-35650-75	Male Pin, Plug	Brass	Nickel	BNC	Chain	Gold	2 GHz	Cap, Free Hanging	Brass	75 Ohms	Polytetrafluoroethylene (PTFE)
AMPHENOL RF 000-35650-51	Male Pin, Plug	Brass	Nickel	BNC	Chain	Gold	4 GHz	Cap, Free Hanging	Brass	51 Ohms	Polytetrafluoroethylene (PTFE)
AMPHENOL RF 000-35275	Female Socket, Jack	Brass	Nickel	N Type						50 Ohms	Polytetrafluoroethylene (PTFE)	1	Clamp	500	Solder	Beryllium Copper	Silver	Silver	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58
AMPHENOL RF 000-35025-RFX	Female Socket, Jack	Brass	Nickel	N Type			11 GHz	Free Hanging (In-Line)		50 Ohms	Polytetrafluoroethylene (PTFE)	1	Clamp	500	Solder	Phosphor Bronze	Silver	Gold	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer	-65 ░C	165 °C
AMPHENOL RF 000-35025	Female Socket, Jack	Brass	Nickel	N Type			11 GHz	Free Hanging (In-Line)		50 Ohms	Polytetrafluoroethylene (PTFE)	1	Clamp	500	Solder	Beryllium Copper	Silver	Silver	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket
