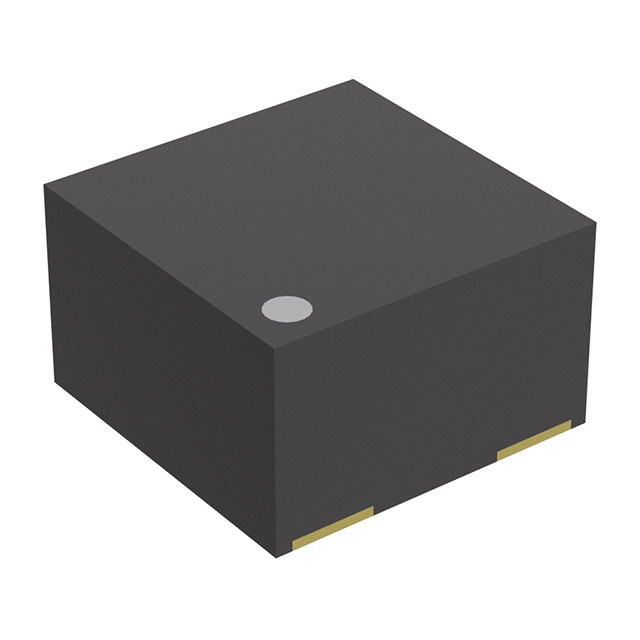

R3114K381A-TR

Active

Nisshinbo Micro Devices Inc

IC SUPERVISOR 1 CHANNEL 4DFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R3114K381A-TR

Active

Nisshinbo Micro Devices Inc

IC SUPERVISOR 1 CHANNEL 4DFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R3114K381A-TR

Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Open Drain or Open Collector
Package / Case	4-UDFN Exposed Pad
Reset	Active Low
Reset Timeout	40 µs
Supplier Device Package	DFN(PL)1010-4
Type	Voltage Detector
Voltage - Threshold	3.8 V

R3114 Series

Part	Supplier Device Package	Output	Voltage - Threshold	Number of Voltages Monitored	Type	Reset	Reset Timeout	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Nisshinbo Micro Devices Inc R3114K301A-TR	DFN(PL)1010-4	Open Drain or Open Collector	3 V	1	Voltage Detector	Active Low	40 µs	Surface Mount	4-UDFN Exposed Pad	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3114K081C-TR	DFN(PL)1010-4	Push-Pull Totem Pole	800 mV	1	Voltage Detector	Active Low	40 µs	Surface Mount	4-UDFN Exposed Pad	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3114K221A-TR	DFN(PL)1010-4	Open Drain or Open Collector	2.2 V	1	Voltage Detector	Active Low	40 µs	Surface Mount	4-UDFN Exposed Pad	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3114Q461A-TR-FE	SC-82AB	Open Drain or Open Collector	4.6 V	1	Voltage Detector	Active Low	40 µs	Surface Mount	SC-82A SOT-343	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3114Q421A-TR-FE	SC-82AB	Open Drain or Open Collector	4.2 V	1	Voltage Detector	Active Low	40 µs	Surface Mount	SC-82A SOT-343	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3114N291A-TR-FE	SOT-23-5	Open Drain or Open Collector	2.9 V	1	Voltage Detector	Active Low	40 µs	Surface Mount	SC-74A SOT-753	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3114Q261C-TR-FE	SC-82AB	Push-Pull Totem Pole	2.6 V	1	Voltage Detector	Active Low	40 µs	Surface Mount	SC-82A SOT-343	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3114N191A-TR-FE	SOT-23-5	Open Drain or Open Collector	1.9 V	1	Voltage Detector	Active Low	40 µs	Surface Mount	SC-74A SOT-753	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3114K381A-TR	DFN(PL)1010-4	Open Drain or Open Collector	3.8 V	1	Voltage Detector	Active Low	40 µs	Surface Mount	4-UDFN Exposed Pad	85 °C	-40 °C
Nisshinbo Micro Devices Inc R3114Q081C-TR-FE	SC-82AB	Push-Pull Totem Pole	800 mV	1	Voltage Detector	Active Low	40 µs	Surface Mount	SC-82A SOT-343	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.26
		30000	$ 0.25

Description

General part information

R3114 Series

Supervisor Open Drain or Open Collector 1 Channel DFN(PL)1010-4
