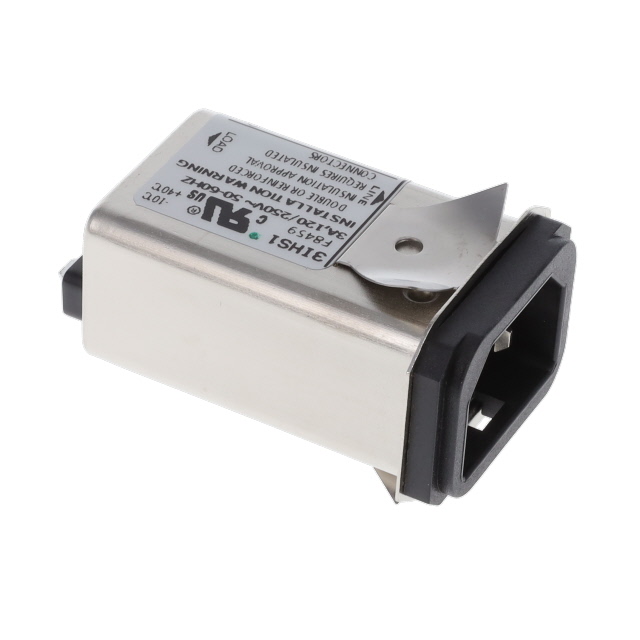

Specification	3IHS1

Accomodates a Fuse	No
Approval Agency	VDE, CSA, UL
Connector Style	IEC 320-C18
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A
Current Rating - Filter	3 A
Filter Application	Medical, Commercial
Filter Subtype	EMI, RFI
Filter Type	Filtered
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Panel Cutout Length	30.2 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	23.5 mm
Termination	Quick Connect
Termination Probe Tip OD	0.189 in
Voltage Rating - Appliance Inlet (Maximum)	250 VAC
Voltage Rating - Appliance Inlet (Minimum)	120 VAC

3I Series

Part	Mounting Type	Voltage Rating - Appliance Inlet (Minimum)	Voltage Rating - Appliance Inlet (Maximum)	Current Rating - Appliance Inlet	Connector Type	Filter Subtype	Filter Application	Filter Type	Approval Agency	Termination Probe Tip OD	Termination	Accomodates a Fuse	Connector Style	Number of Positions	Panel Cutout Shape	Panel Cutout Width	Panel Cutout Length	Current Rating - Filter
TE Connectivity Corcom Filters 3IHS1	Panel Mount Snap-In	120 VAC	250 VAC	3 A	Male Blades Receptacle	EMI RFI	Commercial Medical	Filtered	CSA UL VDE	0.189 in	Quick Connect	No	IEC 320-C18	2	Rectangular	23.5 mm	30.2 mm	3 A
