K86X-ED-15P-BRJ
ActiveKycon, Inc.

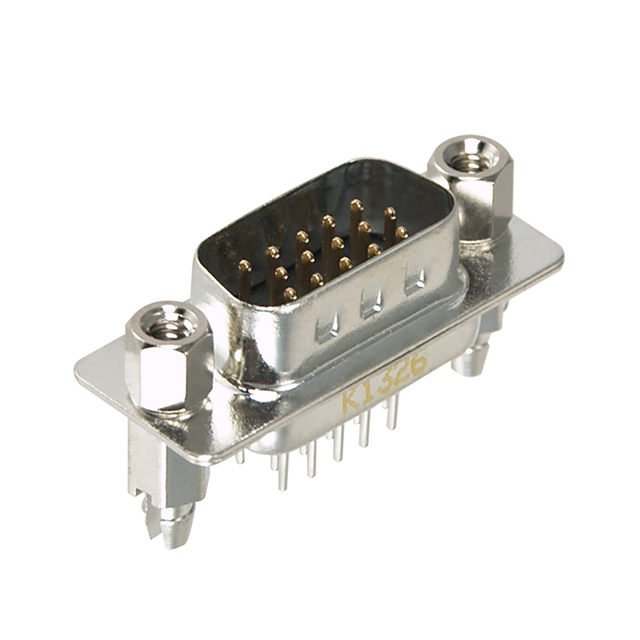

CONN D-SUB HD PLUG 15P VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
K86X-ED-15P-BRJ
ActiveKycon, Inc.
CONN D-SUB HD PLUG 15P VERT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K86X-ED-15P-BRJ |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 1.5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Board Side (4-40), Mating Side, Female Screwlock (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Voltage Rating | 30 VAC |
K86X-ED Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Color | Flange Feature | Contact Type | Shell Material, Finish | Termination | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Voltage Rating | Contact Form | Features | Contact Finish Thickness | Contact Finish | Number of Rows | Number of Positions | Connector Style | Contact Material | Current Rating (Amps) | Dielectric Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kycon, Inc. | 105 ░C | -55 °C | UL94 V-0 | Black | Board Side (4-40) Mating Side Female Screwlock (4-40) | Signal | Nickel Plated Steel | Solder | Male Pins Plug | DE E | 1 | High Density | 30 VAC | Stamped | Board Lock Grounding Indents | Flash | Gold | 3 | 15 | D-Sub High Density | Brass | 1.5 A | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | ||
Kycon, Inc. | 75 ░C | -55 °C | UL94 V-0 | Black | Housing/Shell (Unthreaded) | Signal | Nickel Plated Steel | Solder | Receptacle Female Sockets | DE E | 1 | High Density | 30 VAC | Stamped | Flash | Gold | 3 | 15 | D-Sub High Density | Brass | 1.5 A | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | |||
Kycon, Inc. | 105 ░C | -55 °C | UL94 V-0 | Black | 4-40 Board Side | Signal | Nickel Plated Steel | Solder | Male Pins Plug | DE E | 1 | High Density | 30 VAC | Stamped | Board Lock Grounding Indents | Flash | Gold | 3 | 15 | D-Sub High Density | Brass | 1.5 A | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | ||
Kycon, Inc. | 105 ░C | -55 °C | UL94 V-0 | Black | Housing/Shell (Unthreaded) | Signal | Nickel Plated Steel | Solder | Male Pins Plug | DE E | 1 | High Density | 30 VAC | Stamped | Grounding Indents | Gold | 3 | 15 | D-Sub High Density | Brass | 1.5 A | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.72 | |
| 10 | $ 4.86 | |||
| 25 | $ 4.56 | |||
| 56 | $ 4.31 | |||
| 112 | $ 4.10 | |||
| 280 | $ 3.84 | |||
| 504 | $ 3.69 | |||
| 1008 | $ 3.51 | |||
| 2520 | $ 3.29 | |||
Description
General part information
K86X-ED Series
15 Position D-Sub, High Density Plug, Male Pins Connector
