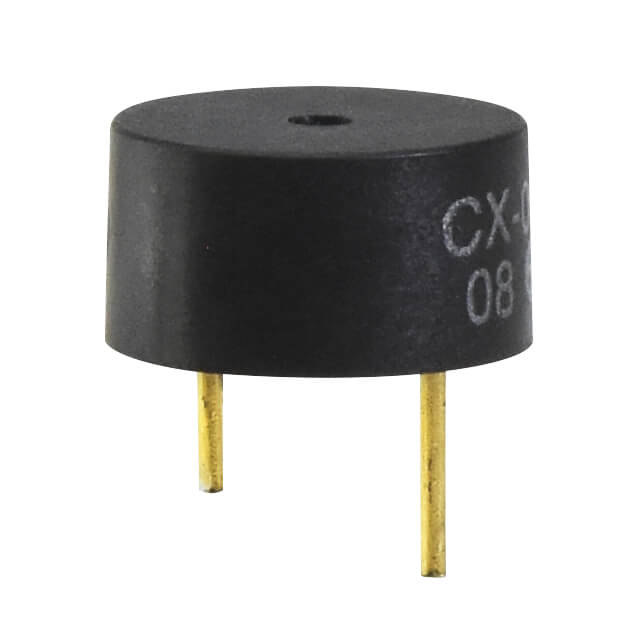

CX-0905C

Active

CUI Devices

BUZZER MAGNETIC 5V 9.60MM TH

Search across all available documentation for this part.

Active

CUI Devices

BUZZER MAGNETIC 5V 9.60MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	CX-0905C

Current - Supply	35 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.7 kHz
Height - Seated (Max) [Max]	0.217 in
Height - Seated (Max) [Max]	5.5 mm
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Ratings	Washable
Size / Dimension [diameter]	0.378 in
Size / Dimension [diameter]	9.6 mm
Sound Pressure Level (SPL)	80 dB
Technology	Magnetic
Termination	PC Pins
Voltage - Rated	5 V
Voltage Range [Max]	7 V
Voltage Range [Min]	4 VDC

Part	Driver Circuitry	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Ratings	Operating Mode	Input Type	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Range [Min]	Voltage Range [Max]	Mounting Type	Technology	Port Location	Termination	Sound Pressure Level (SPL)	Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]
CUI Devices CX-0905C	Indicator Internally Driven	0.217 in	5.5 mm	5 V	Washable	Single Tone	DC	35 mA	70 °C	-30 ░C	4 VDC	7 V	Through Hole	Magnetic	Top	PC Pins	80 dB	2.7 kHz	0.378 in	9.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Magnetic 5 V 35mA 2.7kHz 80dB @ 5V, 10cm Through Hole PC Pins
