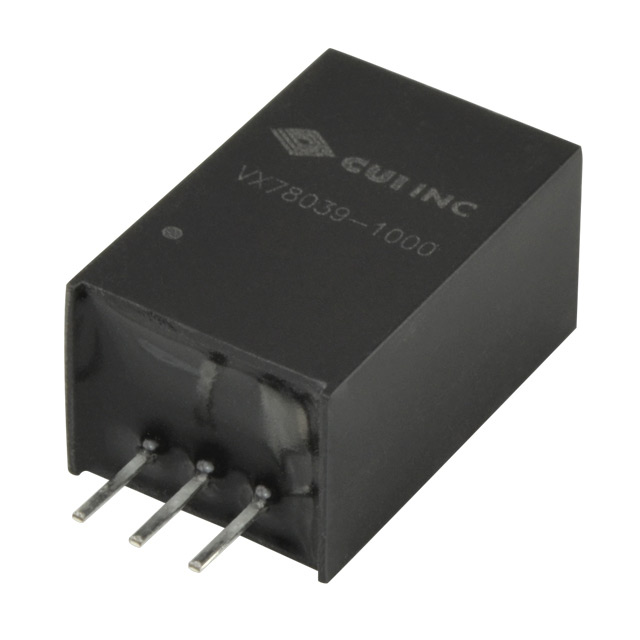

VX7815-1000

CUI Inc.

DC DC CONVERTER 15V 15W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 15V 15W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VX7815-1000	VX7815 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC	EN, CB Scheme, UL, IEC
Current - Output (Max) [Max]	1 A	1 - 500 A
Efficiency	96 %	95 - 96 %
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	3-SIP Module	3-SIP Module
Power (Watts)	15 W	7.5 - 20 W
Size / Dimension [x]	0.45 in	0.45 - 0.69 in
Size / Dimension [x]	11.5 mm	11.5 - 17.5 mm
Size / Dimension [y]	0.35 "	0.3 - 0.45 in
Size / Dimension [y]	9 mm	7.6 - 11.5 mm
Size / Dimension [z]	0.69 "	0.35 - 0.69 "
Size / Dimension [z]	17.5 mm	9 - 17.5 mm
Standard Number	55024, 60950-1, 55032 Class A	55024, 60950-1, 55032 Class A
Type	Linear Regulator Replacement	Non-Isolated PoL Module, Linear Regulator Replacement
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	20 V	8 - 20 V
Voltage - Output 1	15 V	-15 - 15 V
Voltage - Output 2	-	-15 V

DC DC CONVERTER +/-15V 20W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Mounting Type	Approval Agency	Voltage - Output 1	Voltage - Output 2	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Applications	Type	Package / Case
CUI Inc. VX7815-1000R	85 °C	-40 °C	20 W	1 A, 300 mA	36 V	8 V	96 %	Through Hole, Right Angle	CB Scheme, EN, IEC, UL	-15 V, 15 V	-15 V	55024, 55032 Class A, 60950-1	0.45 in	0.35 "	17.5 mm	0.69 in	11.5 mm	9 mm	1	ITE (Commercial)	Non-Isolated PoL Module	3-SIP Module
CUI Inc. VX7815-1000	85 °C	-40 °C	15 W	1 A	36 V	20 V	96 %	Through Hole	CB Scheme, EN, IEC, UL	15 V		55024, 55032 Class A, 60950-1	0.35 "	0.69 "	11.5 mm	0.45 in	9 mm	17.5 mm	1	ITE (Commercial)	Linear Regulator Replacement	3-SIP Module
CUI Inc. VX7815-500	85 °C	-40 °C	7.5 W	500 mA	36 V	19 V	95 %	Through Hole	CB Scheme, EN, IEC, UL	15 V		55024, 55032 Class A, 60950-1	0.3 "	0.4 "	11.6 mm	0.46 in	7.6 mm	10.2 mm	1	ITE (Commercial)	Linear Regulator Replacement	3-SIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	44	$ 3.10

General part information

Linear Regulator Replacement DC DC Converter 1 Output 15V 1A 20V - 36V Input

Technical documentation and resources

No documents available
