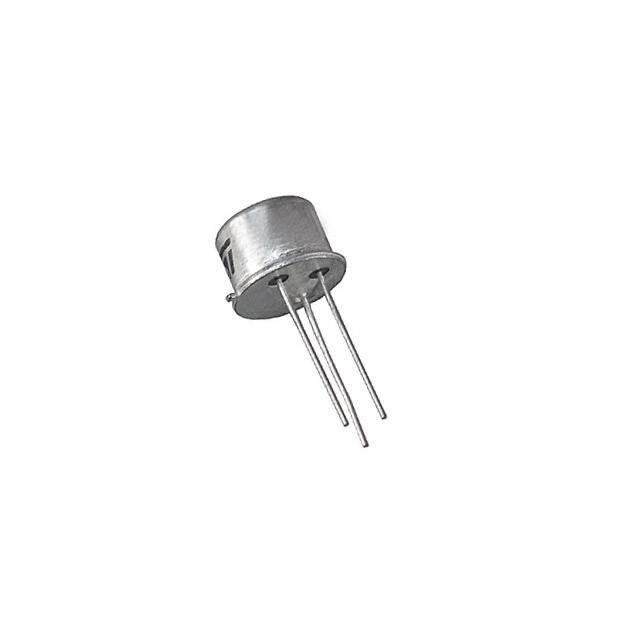

2N5415

Active

STMicroelectronics

TRANS PNP 200V 1A TO39

Search across all available documentation for this part.

Active

STMicroelectronics

TRANS PNP 200V 1A TO39

Technical Specifications

Parameters and characteristics for this part

Specification	2N5415

Current - Collector (Ic) (Max) [Max]	1 A
Current - Collector Cutoff (Max) [Max]	50 µA
DC Current Gain (hFE) (Min) @ Ic, Vce	30
Frequency - Transition	15 MHz
Mounting Type	Through Hole
Package / Case	TO-39-3 Metal Can, TO-205AD
Power - Max [Max]	1 W
Supplier Device Package	TO-39
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	2.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	200 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TRANS PNP 200V 1A TO39

Part	Package / Case	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Transistor Type	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Power - Max [Max]
STMicroelectronics 2N5415	TO-205AD, TO-39-3 Metal Can	2.5 V	15 MHz	Through Hole	30	1 A	200 V	PNP	50 µA	TO-39	1 W

General part information

Bipolar (BJT) Transistor PNP 200 V 1 A 15MHz 1 W Through Hole TO-39
