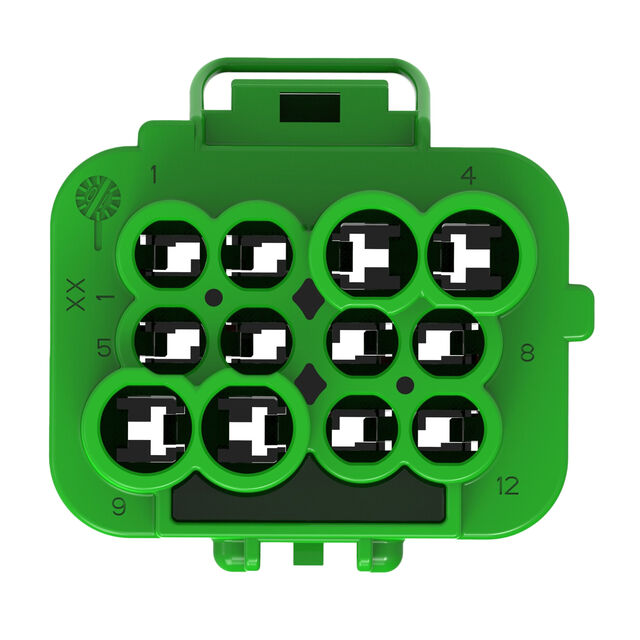

1452299-2

Active

TE Connectivity Raychem Cable Protection

FEM HSG INLI.ASY12P

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

FEM HSG INLI.ASY12P

Technical Specifications

Parameters and characteristics for this part

Specification	1452299-2

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Number of Rows	3
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.264 in
Pitch [x]	6.7 mm
Row Spacing	5.75 mm
Row Spacing	0.226 in

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Termination	Insulation Material	Row Spacing	Row Spacing	Number of Positions	Color	Contact Type	Mounting Type	Number of Rows	Connector Type	Fastening Type	Pitch [x]	Pitch [x]
TE Connectivity Raychem Cable Protection 1452299-2	-40 °C	120 °C	Terminal Position Lock (TPA)	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	5.75 mm	0.226 in	12	Green	Female Socket	Free Hanging (In-Line)	3	Receptacle	Latch Holder	0.264 in	6.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle Green 0.264" (6.70mm)

Technical documentation and resources

No documents available
