291-H36AB

Active

Wakefield-Vette

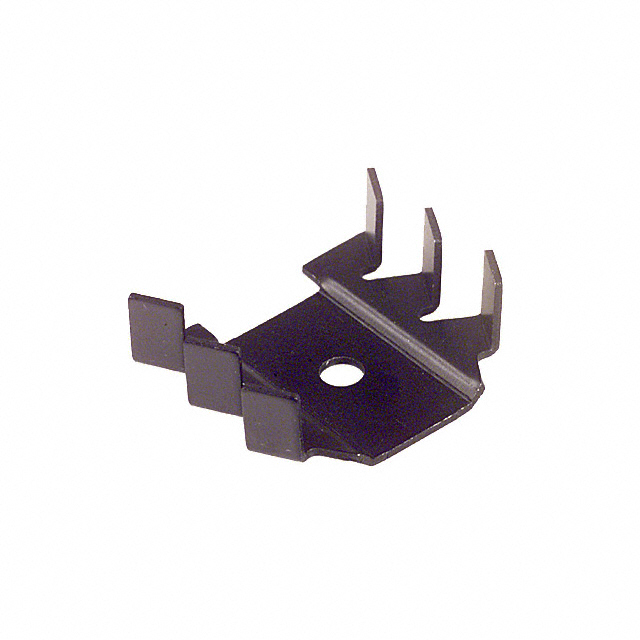

HEATSINK TO-220 BOLT-ON BLK

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK TO-220 BOLT-ON BLK

Technical Specifications

Parameters and characteristics for this part

Specification	291-H36AB

Attachment Method	Bolt On
Fin Height [z]	0.36 in
Fin Height [z]	9.14 mm
Length [x]	21.84 mm
Length [x]	0.86 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	2 W, 68 °C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	16 °C/W
Thermal Resistance @ Natural	34 °C/W
Type	Board Level
Width	25.4 mm
Width [x]	1 in

HEATSINK TO-220 BOLT-ON BLK

Part	Attachment Method	Material	Fin Height [z]	Fin Height [z]	Power Dissipation @ Temperature Rise	Type	Length [x]	Length [x]	Width	Width [x]	Package Cooled	Shape	Material Finish	Thermal Resistance @ Natural	Thermal Resistance @ Forced Air Flow
Wakefield-Vette 291-H36AB	Bolt On	Aluminum	0.36 in	9.14 mm	2 W, 68 °C	Board Level	21.84 mm	0.86 in	25.4 mm	1 in	TO-220	Rectangular, Fins	Black Anodized	34 °C/W	16 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 2.0W @ 68°C Board Level
