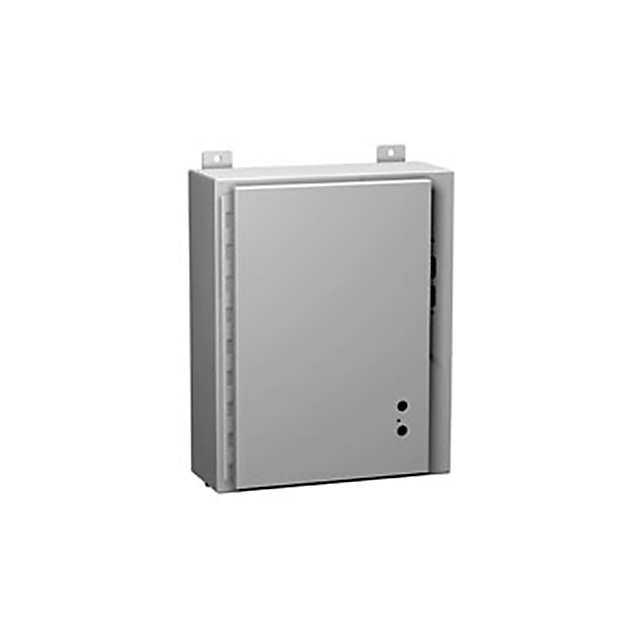

1447SA8

Obsolete

Hammond Manufacturing

BOX STEEL GRAY 21.38"L X 20"W

Deep-Dive with AI

Search across all available documentation for this part.

1447SA8

Obsolete

Hammond Manufacturing

BOX STEEL GRAY 21.38"L X 20"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1447 Series

Box Metal, Steel Gray Hinged Door, Lid 21.380" L x 20.000" W (543.05mm x 508.00mm) X 8.000" (203.20mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1447SA8	1447 Series

Area (L x W)	-	1.013 - 4910 cm²
Area (L x W)	-	513 - 2243 in²
Area (L x W)	-	1130 in²
Area (L x W)	-	7290 cm²
Area (L x W) [custom]	2761 cm˛	2761 - 5897 cm˛
Area (L x W) [custom]	428 in˛	428 - 914 in˛
Color	Gray	Gray, Natural
Container Type	Box	Box
Design	Hinged Door, Lid	Hinged Door, Lid
Features	Interior Panels	Interior Panels
Height [z]	8 "	8 - 16 "
Height [z]	203.2 mm	203.2 - 406.4 mm
Material	Metal, Steel	Metal, Steel
Ratings	UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12	NEMA 4, JIC EGP-1-1967, UL-508, NEMA 3R, IP66, NEMA 12, NEMA 13, IP54, 4, 12, 13, 4X
Shipping Info	-	Drop shipped from the Manufacturer's Warehouse
Size / Dimension [x]	543.05 mm	543.05 - 1524 mm
Size / Dimension [x]	21.38 in	21.38 - 60 in
Size / Dimension [y]	508 mm	508 - 949.45 mm
Size / Dimension [y]	20 in	20 - 37.38 in
Thickness	14 Gauge	14 Gauge
Weight	51 lbs	51 - 265 lbs
Weight	23.1 kg	23.1 - 248 kg
Weight	-	112.5 kg

1447 Series

BOX STEEL GRAY 24"L X 21.38"W

Part	Container Type	Material	Features	Color	Design	Area (L x W)	Area (L x W)	Ratings	Thickness	Weight	Weight	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]	Shipping Info	Area (L x W) [custom]	Area (L x W) [custom]	Weight
Hammond Manufacturing 1447SN4B8	Box	Metal, Steel	Interior Panels	Gray	Hinged Door, Lid	3310 cm²	513 in²	IP66, JIC EGP-1-1967, NEMA 12, NEMA 3R, NEMA 4, UL-508	14 Gauge	27.2 kg	60 lbs	21.38 in	543.05 mm	24 in	609.6 mm	8 "	203.2 mm
Hammond Manufacturing 1447SB10	Box	Metal, Steel	Interior Panels	Gray	Hinged Door, Lid	3310 cm²	513 in²	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	14 Gauge	28.6 kg	63 lbs	21.38 in	543.05 mm	24 in	609.6 mm	10 in	254 mm
Hammond Manufacturing 1447SN4SSB8	Box		Interior Panels	Natural	Hinged Door, Lid	3310 cm²	513 in²	12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	14 Gauge	27.2 kg	60 lbs	21.38 in	543.05 mm	24 in	609.6 mm	8 "	203.2 mm
Hammond Manufacturing 1447SN4G8	Box	Metal, Steel	Interior Panels	Gray	Hinged Door, Lid			IP66, JIC EGP-1-1967, NEMA 12, NEMA 3R, NEMA 4, UL-508	14 Gauge	55.8 kg	123 lbs	31.38 in	797.05 mm	36 "	914.4 mm	8 "	203.2 mm	1130 in²	7290 cm²	Drop shipped from the Manufacturer's Warehouse
Hammond Manufacturing 1447SN4SSC8	Box		Interior Panels	Natural	Hinged Door, Lid	3929 cm²	609 in²	12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	14 Gauge	33.1 kg	73 lbs	24 "	609.6 mm	25.38 in	644.65 mm	8 "	203.2 mm
Hammond Manufacturing 1447SA8	Box	Metal, Steel	Interior Panels	Gray	Hinged Door, Lid			IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	14 Gauge	23.1 kg	51 lbs	20 in	508 mm	21.38 in	543.05 mm	8 "	203.2 mm				2761 cm˛	428 in˛
Hammond Manufacturing 1447SL8	Box	Metal, Steel	Interior Panels	Gray	Hinged Door, Lid	1.447 m²	2243 in²	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	14 Gauge	248 lbs		37.38 "	949.45 mm	60 "	1524 mm	8 "	203.2 mm			Drop shipped from the Manufacturer's Warehouse			112.5 kg
Hammond Manufacturing 1447SN4SSE8	Box		Interior Panels	Natural	Hinged Door, Lid	4910 cm²	761 in²	12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	14 Gauge	40.8 kg	90 lbs					8 "	203.2 mm			Drop shipped from the Manufacturer's Warehouse
Hammond Manufacturing 1447SN4SSL12	Box		Interior Panels	Natural	Hinged Door, Lid	1.447 m²	2243 in²	12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	14 Gauge	120.2 kg	265 lbs	37.38 "	949.45 mm	60 "	1524 mm					Drop shipped from the Manufacturer's Warehouse
Hammond Manufacturing 1447SN4SSH12	Box		Interior Panels	Natural	Hinged Door, Lid			12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508	14 Gauge	68.9 kg	152 lbs	31.38 in	797.05 mm	42 in	1066.8 mm					Drop shipped from the Manufacturer's Warehouse
