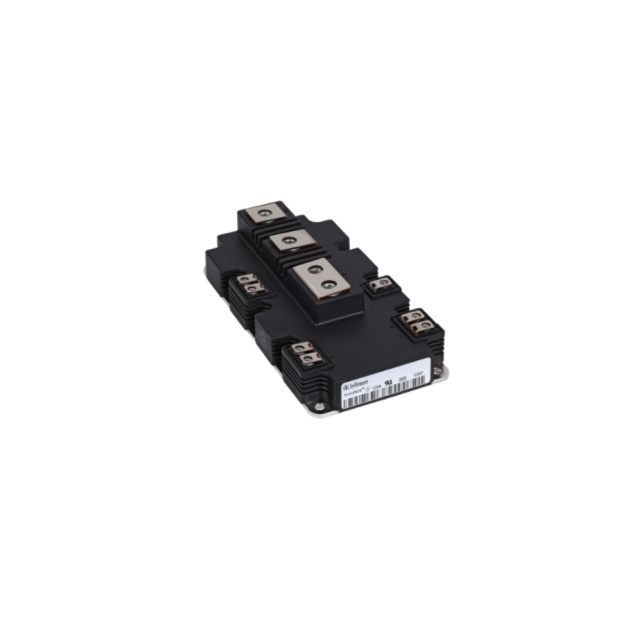

DF900R12IP4DBOSA1

Active

Infineon Technologies

THE DF900R12IP4D IS A CHOPPER IGBT4 - P4 MODULE IN A PRIMEPACK™ 2 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 900 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE DF900R12IP4D IS A CHOPPER IGBT4 - P4 MODULE IN A PRIMEPACK™ 2 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 900 A.

Technical Specifications

Parameters and characteristics for this part

Specification	DF900R12IP4DBOSA1

Configuration	Single Chopper
Current - Collector (Ic) (Max) [Max]	900 A
Current - Collector Cutoff (Max) [Max]	5 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	54 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	5100 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.05 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	NTC Thermistor	Configuration	IGBT Type	Package / Case	Power - Max [Max]	Input	Input Capacitance (Cies) @ Vce	Mounting Type	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]
Infineon Technologies DF900R12IP4DVBOSA1		Single Chopper	Trench Field Stop	Module	5100 W	Standard	54 nF	Chassis Mount	900 A	2.05 V	Module	1200 V	5 mA
Infineon Technologies DF900R12IP4DBOSA1		Single Chopper	Trench Field Stop	Module	5100 W	Standard	54 nF	Chassis Mount	900 A	2.05 V	Module	1200 V	5 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	3	$ 395.73

General part information

PrimePACK™2 1200 V, 900 A chopperIGBT modulewith Trench/Fieldstop IGBT4, increased Emitter Controlled 4 diode and NTC.
