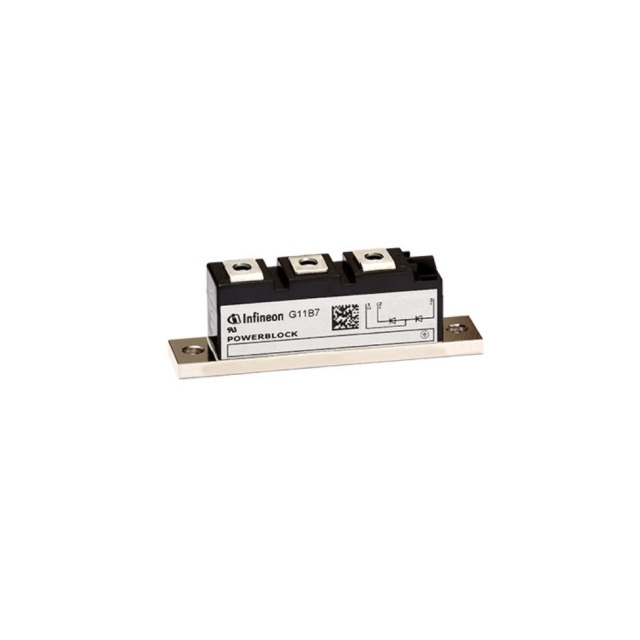

DD104N12KHPSA1

Obsolete

Infineon Technologies

DIODE MOD GP 1200V 104A MOD

Search across all available documentation for this part.

Obsolete

Infineon Technologies

DIODE MOD GP 1200V 104A MOD

Technical Specifications

Parameters and characteristics for this part

Specification	DD104N12KHPSA1

Current - Average Rectified (Io) (per Diode)	104 A
Current - Reverse Leakage @ Vr	20 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.4 V

Part	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode)	Package / Case	Technology	Diode Configuration	Current - Reverse Leakage @ Vr	Speed	Speed	Supplier Device Package
Infineon Technologies DD104N12KHPSA1	Chassis Mount	1.2 kV	150 °C	-40 °C	1.4 V	104 A	Module	Standard	1 Pair Common Cathode	20 mA	Standard Recovery >500ns	200 mA	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 1200 V 104A Chassis Mount Module

Technical documentation and resources

No documents available
