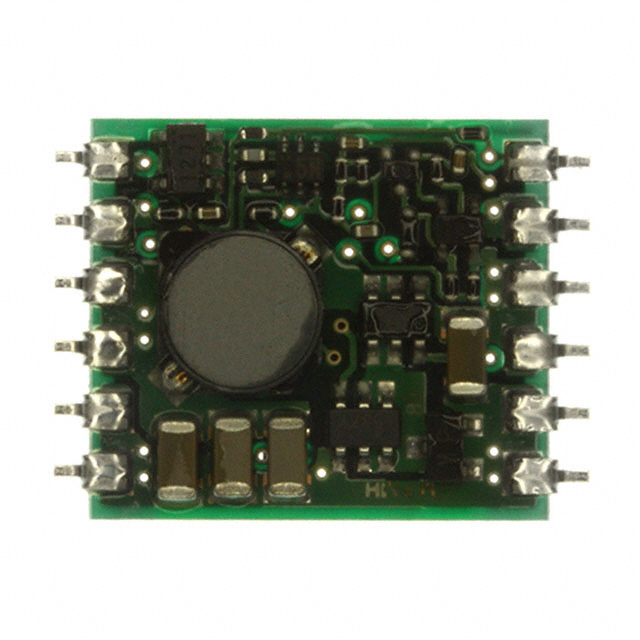

MPDTY102S
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 0.8-5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPDTY102S
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 0.8-5V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MPDTY102S | MPDTY Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active High, Enable, Active Low |
| Current - Output (Max) [Max] | 2 A | 2 - 8 A |
| Efficiency | 93 % | 87 - 93 % |
| Features | Remote On/Off, SCP | UVLO, Remote On/Off, SCP, OTP |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 12-SMD Module | 8-SMD Module, 22-SMD Module, 12-SMD Module |
| Power (Watts) | 10 W | 7 - 44 W |
| Size / Dimension [x] | 16.4 mm | 11 - 33.8 mm |
| Size / Dimension [x] | 0.65 in | 0.43 - 1.33 " |
| Size / Dimension [y] | 0.74 in | 0.33 - 0.74 in |
| Size / Dimension [y] | 18.7 mm | 8.5 - 18.7 mm |
| Size / Dimension [z] | 0.17 in | 0.17 - 0.24 in |
| Size / Dimension [z] | 4.2 mm | 4.2 - 6 mm |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 - 14 V |
| Voltage - Input (Min) [Min] | 2.97 V | 2.97 - 6.5 V |
| Voltage - Output 1 | - | 1.2 V |
| Voltage - Output 1 [Max] | 5 V | 2.5 - 5.5 V |
| Voltage - Output 1 [Min] | 0.8 V | 0.8 V |
MPDTY Series
DC DC CONVERTER 0.8-2.5V 7W
| Part | Type | Voltage - Input (Max) [Max] | Features | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Power (Watts) | Current - Output (Max) [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Package / Case | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Applications | Efficiency | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MPDTY201S | Non-Isolated PoL Module | 5.5 V | Remote On/Off, SCP, UVLO | 3 V | 1 | 2.5 V | 0.8 V | 7 W | 3 A | Surface Mount | 85 °C | -40 °C | Active High, Enable | 8-SMD Module | 5.6 mm | 0.43 " | 8.5 mm | 0.33 in | 0.22 in | 11 mm | ITE (Commercial) | 87 % | |
Murata Power Solutions Inc. MPDTY303S | Non-Isolated PoL Module | 14 V | OTP, Remote On/Off, SCP, UVLO | 6.5 V | 1 | 5.5 V | 0.8 V | 44 W | 8 A | Surface Mount | 85 °C | -40 °C | Active Low, Enable | 22-SMD Module | 4.2 mm | 1.09 " | 15.4 mm | 0.61 in | 0.17 in | 27.8 mm | ITE (Commercial) | 92 % | |
Murata Power Solutions Inc. MPDTY102S | Non-Isolated PoL Module | 5.5 V | Remote On/Off, SCP | 2.97 V | 1 | 5 V | 0.8 V | 10 W | 2 A | Surface Mount | 85 °C | -40 °C | Active Low, Enable | 12-SMD Module | 4.2 mm | 0.65 in | 18.7 mm | 0.74 in | 0.17 in | 16.4 mm | ITE (Commercial) | 93 % | |
Murata Power Solutions Inc. MPDTY122S | Non-Isolated PoL Module | 5.5 V | Remote On/Off, SCP | 4.5 V | 1 | 7 W | 6 A | Surface Mount | 85 °C | -40 °C | Active Low, Enable | 12-SMD Module | 6 mm | 1.33 " | 15.4 mm | 0.61 in | 0.24 " | 33.8 mm | ITE (Commercial) | 93 % | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPDTY Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5V 2A 2.97V - 5.5V Input
