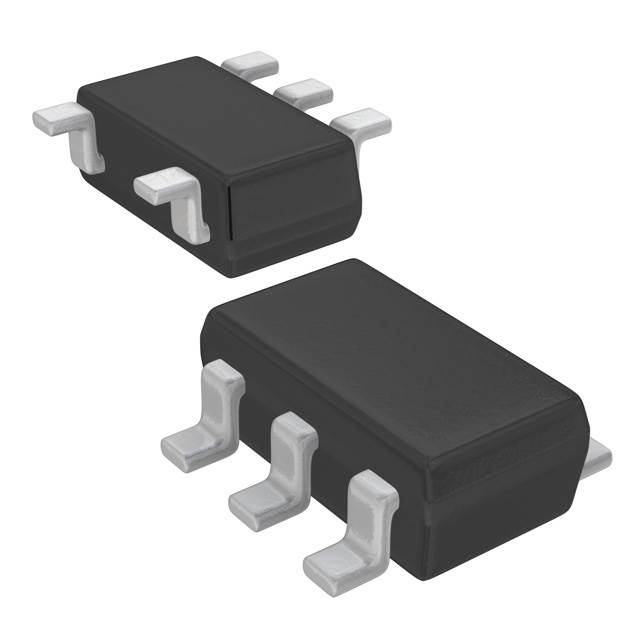

TK71750SIL

Obsolete

Asahi Kasei Microdevices/AKM

IC REG LINEAR 5V 200MA SOT23-5

Search across all available documentation for this part.

Obsolete

Asahi Kasei Microdevices/AKM

IC REG LINEAR 5V 200MA SOT23-5

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TK71750SIL	TK71750 Series

Control Features	Enable	Enable
Current - Output	200 mA	200 mA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	SC-74A, SOT-753	SC-74A, SOT-753
Protection Features	Over Temperature, Reverse Polarity, Over Current	Over Temperature, Reverse Polarity, Over Current
Supplier Device Package	SOT-23-5	SOT-23-5
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Output (Min/Fixed)	5 V	5 V

IC REG LINEAR 5V 200MA SOT23-5

Part	Output Type	Output Configuration	Control Features	Current - Output	Voltage - Output (Min/Fixed)	Number of Regulators	Protection Features	Mounting Type	Voltage - Input (Max) [Max]	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Asahi Kasei Microdevices/AKM TK71750SCL	1.81 mOhm	Positive	Enable	200 mA	5 V	1	Over Current, Over Temperature, Reverse Polarity	Surface Mount	14 V	SOT-23-5	SC-74A, SOT-753	85 °C	-40 °C
Asahi Kasei Microdevices/AKM TK71750SIL	1.81 mOhm	Positive	Enable	200 mA	5 V	1	Over Current, Over Temperature, Reverse Polarity	Surface Mount	14 V	SOT-23-5	SC-74A, SOT-753	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-5
