Technical Specifications
Parameters and characteristics for this part
| Specification | L17H2J70131 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Receptacle, Female Sockets, Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows [custom] | 3 |
| Number of Rows [custom] | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | High Density |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.38 | |
| 10 | $ 7.58 | |||
| 25 | $ 7.16 | |||
| 45 | $ 6.99 | |||
| 90 | $ 6.64 | |||
| 270 | $ 5.94 | |||
| 450 | $ 5.59 | |||
| 945 | $ 4.89 | |||
Description
General part information
L17H2 Series

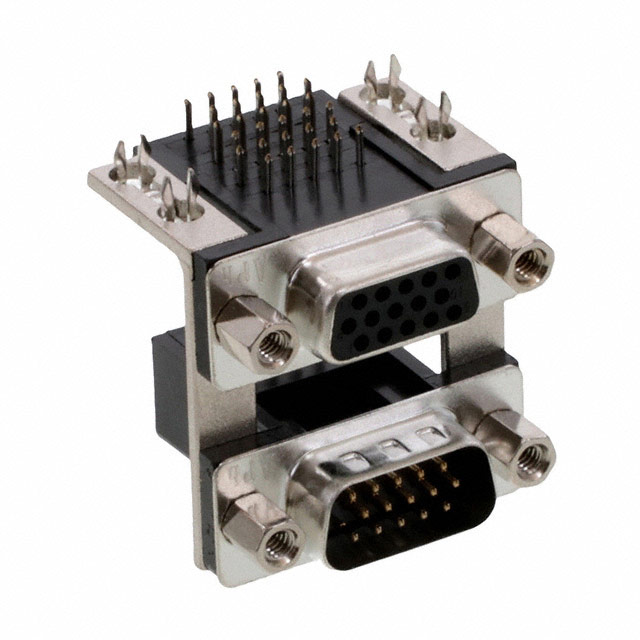

15, 15 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector
