HL1-HTM-AC240V-F

Obsolete

Panasonic Electric Works

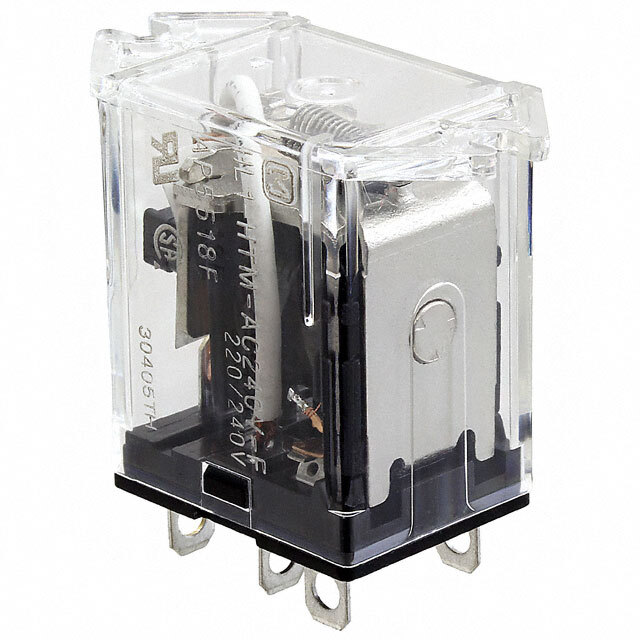

RELAY GEN PURPOSE SPDT 15A 240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGeneral Appl Guidelines Datasheet +1

HL1-HTM-AC240V-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPDT 15A 240V

Deep-Dive with AI

DocumentsGeneral Appl Guidelines Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HL1-HTM-AC240V-F

Approval Agency	cURus, TUV
Coil Current	5 mA
Coil Resistance	48 kOhms
Coil Type	Non Latching
Coil Voltage	240 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	15 A
Mounting Type	Chassis Mount
Must Operate Voltage	192 VAC
Must Release Voltage	72 VAC/DC
Operate Time	10 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-50 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	125 VAC
Termination Style	Quick Connect - 0.187" (4.7mm)

HL1-HT Series

Part	Termination Style	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Must Operate Voltage	Switching Voltage	Relay Type	Operate Time	Coil Type	Contact Form	Must Release Voltage	Mounting Type	Coil Current	Approval Agency	Coil Voltage	Contact Rating (Current)	Release Time
Panasonic Electric Works HL1-HTM-DC24V	Quick Connect - 0.187" (4.7mm)	Silver Alloy	70 °C	-50 °C	650 Ohms	19.2 VDC	125 VAC	General Purpose	10 ms	Non Latching	SPDT (1 Form C)	2.4 VDC	Chassis Mount	37 mA	cURus TUV	24 VDC	15 A	5 ms
Panasonic Electric Works HL1-HTM-AC24V	Quick Connect - 0.187" (4.7mm)	Silver Alloy	70 °C	-50 °C	480 Ohms	19.2 VAC	125 VAC	General Purpose	10 ms	Non Latching	SPDT (1 Form C)	7.2 VAC	Chassis Mount	50 mA	cURus TUV	24 VAC	15 A	10 ms
Panasonic Electric Works HL1-HTM-AC24V-F	Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	70 °C	-50 °C	480 Ohms	19.2 VAC	125 VAC	General Purpose	25 ms	Non Latching	SPDT (1 Form C)	7.2 VAC	Chassis Mount	50 mA	cURus TUV	24 VAC	15 A	25 ms
Panasonic Electric Works HL1-HTM-DC12V-F	Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	70 °C	-50 °C	160 Ohms	9.6 VDC	125 VAC	General Purpose	25 ms	Non Latching	SPDT (1 Form C)	1.2 VDC	Chassis Mount	75 mA	cURus TUV	12 VDC	15 A	25 ms
Panasonic Electric Works HL1-HTM-AC115V	Quick Connect - 0.187" (4.7mm)	Silver Alloy	70 °C	-50 °C		92 VAC	125 VAC	General Purpose	10 ms	Non Latching	SPDT (1 Form C)	34.5 VAC	Chassis Mount	10.4 mA	cURus TUV	115 VAC	15 A	10 ms
Panasonic Electric Works HL1-HTM-AC240V-F	Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	70 °C	-50 °C	48 kOhms	192 VAC	125 VAC	General Purpose	10 ms	Non Latching	SPDT (1 Form C)	72 VAC/DC	Chassis Mount	5 mA	cURus TUV	240 VAC	15 A	10 ms
Panasonic Electric Works HL1-HTM-AC240V	Quick Connect - 0.187" (4.7mm)	Silver Alloy	70 °C	-50 °C	48 kOhms	192 VAC	125 VAC	General Purpose	10 ms	Non Latching	SPDT (1 Form C)	72 VAC/DC	Chassis Mount	5 mA	cURus TUV	240 VAC	15 A	10 ms
Panasonic Electric Works HL1-HTM-DC6V-F	Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	70 °C	-50 °C	40 Ohms	4.8 VDC	125 VAC	General Purpose	25 ms	Non Latching	SPDT (1 Form C)	0.6 VDC	Chassis Mount	150 mA	cURus TUV		15 A	25 ms
