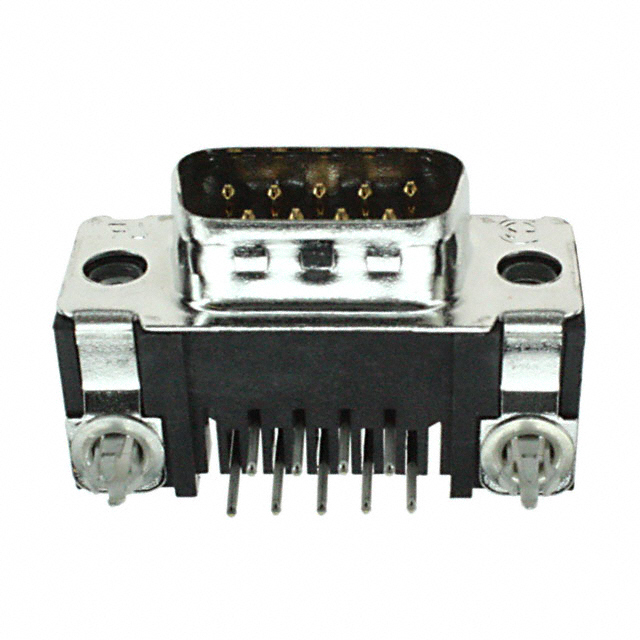

CONN D-SUB PLUG 9POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB PLUG 9POS R/A SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	788792-1	788792 Series

Backset Spacing	8.08 mm	8.08 mm
Backset Spacing	0.318 "	0.318 "
Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	-	Flash
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	6 A	6 A
Features	Grounding Indents, Board Lock	Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Termination	Solder	Solder
Voltage Rating	125 VDC	125 VDC

CONN D-SUB PLUG 9POS R/A SLDR

Part	Voltage Rating	Termination	Features	Material Flammability Rating	Backset Spacing	Backset Spacing	Current Rating (Amps)	Contact Type	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Contact Finish	Contact Material	Color	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Number of Rows	Connector Type	Contact Finish Thickness
TE Connectivity AMP Connectors 788792-1	125 VDC	Solder	Board Lock, Grounding Indents	UL94 V-0	8.08 mm	0.318 "	6 A	Signal	Through Hole, Right Angle	DE, E	1	Housing/Shell (4-40)	Gold	Brass	Black	9	105 ░C	-55 °C	D-Sub	2	Male Pins, Plug
TE Connectivity AMP Connectors 788792-2	125 VDC	Solder	Board Lock, Grounding Indents	UL94 V-0	8.08 mm	0.318 "	6 A	Signal	Through Hole, Right Angle	DE, E	1	Housing/Shell (4-40)	Gold	Brass	Black	9	105 ░C	-55 °C	D-Sub	2	Male Pins, Plug	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	650	$ 3.09

General part information

9 Position D-Sub Plug, Male Pins Connector
