T2160N28TOFVTXPSA1
ActiveInfineon Technologies

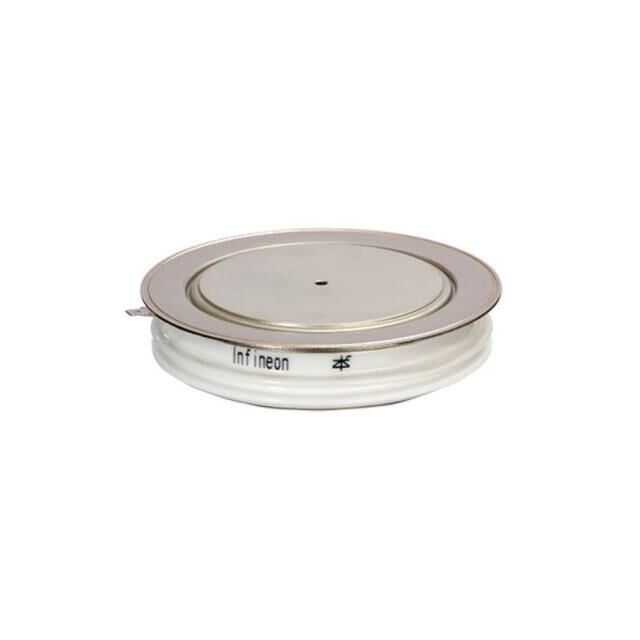

2800 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 111 MM DIA AND A HEIGHT OF 26 MM
Deep-Dive with AI
Search across all available documentation for this part.
T2160N28TOFVTXPSA1
ActiveInfineon Technologies
2800 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 111 MM DIA AND A HEIGHT OF 26 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T2160N28TOFVTXPSA1 |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 300 mA |
| Current - Hold (Ih) (Max) [Max] | 300 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 44000 A |
| Current - On State (It (AV)) (Max) [Max] | 2400 A |
| Current - On State (It (RMS)) (Max) | 4600 A |
| Mounting Type | Chassis Mount |
| Number of SCRs, Diodes | 1 SCR |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | DO-200AE |
| Structure | Single |
| Voltage - Off State | 2.8 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 2 | $ 798.46 | |
Description
General part information
T2160N28 Series
The T2160NPhase Control Thyristor discsare assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 111mm and a height of 26mm.
