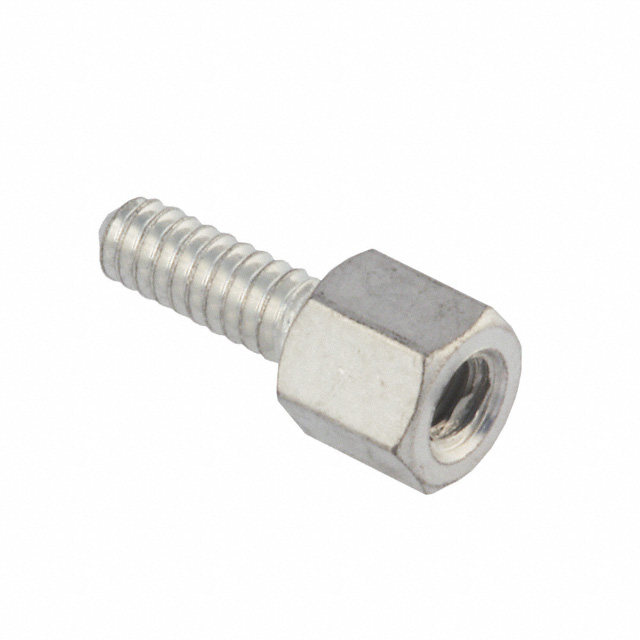

CONN D-SUB HD FEMALE SCREW LOCK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
829261-2
ActiveTE Connectivity AMP Connectors
CONN D-SUB HD FEMALE SCREW LOCK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 829261-2 | 829261 Series |
|---|---|---|
| Accessory Type | Jackscrew Socket | Jackscrew Socket |
| For Use With/Related Products | AMPLIMITE Series HD | AMPLIMITE Series HD |
| Length - Below Head | 7.91 mm | 5 - 7.91 mm |
| Length - Below Head | 0.311 in | 0.197 - 0.311 in |
| Length - Below Head | - | 0.559 in |
| Length - Below Head | - | 14.2 mm |
| Length - Threaded Portion Below Head | - | 14.2 mm |
| Length - Threaded Portion Below Head [x] | 7.91 mm | 5 - 7.91 mm |
| Length - Threaded Portion Below Head [x] | 0.311 in | 0.197 - 0.559 in |
| Thread Size | 4-40 Screw, 4-40 Socket | M3 Socket, M3 Screw, 4-40 Socket, 4-40 Screw |
829261 Series
CONN D-SUB HD FEMALE SCREW LOCK
| Part | Length - Threaded Portion Below Head [x] | Length - Threaded Portion Below Head [x] | Accessory Type | For Use With/Related Products | Length - Below Head | Length - Below Head | Thread Size | Length - Threaded Portion Below Head | Length - Below Head [x] | Length - Below Head [x] |
|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 829261-4 | 7.91 mm | 0.311 in | Jackscrew Socket | AMPLIMITE Series HD | 7.91 mm | 0.311 in | M3 Screw, M3 Socket | |||
TE Connectivity AMP Connectors 829261-6 | 7.91 mm | 0.311 in | Jackscrew Socket | AMPLIMITE Series HD | 7.91 mm | 0.311 in | 4-40 Socket, M3 Screw | |||
TE Connectivity AMP Connectors 1-829261-6 | 0.559 " | Jackscrew Socket | AMPLIMITE Series HD | 4-40 Socket, M3 Screw | 14.2 mm | 0.559 in | 14.2 mm | |||
TE Connectivity AMP Connectors 1-829261-2 | 0.559 " | Jackscrew Socket | AMPLIMITE Series HD | 4-40 Screw, 4-40 Socket | 14.2 mm | 0.559 in | 14.2 mm | |||
TE Connectivity AMP Connectors 829261-8 | 7.91 mm | 0.311 in | Jackscrew Socket | AMPLIMITE Series HD | 7.91 mm | 0.311 in | 4-40 Screw, M3 Socket | |||
TE Connectivity AMP Connectors 829261-2 | 7.91 mm | 0.311 in | Jackscrew Socket | AMPLIMITE Series HD | 7.91 mm | 0.311 in | 4-40 Screw, 4-40 Socket | |||
TE Connectivity AMP Connectors 2-829261-4 | 5 mm | 0.197 in | Jackscrew Socket | AMPLIMITE Series HD | 5 mm | 0.197 in | M3 Screw, M3 Socket |
