1-829261-6

Active

TE Connectivity AMP Connectors

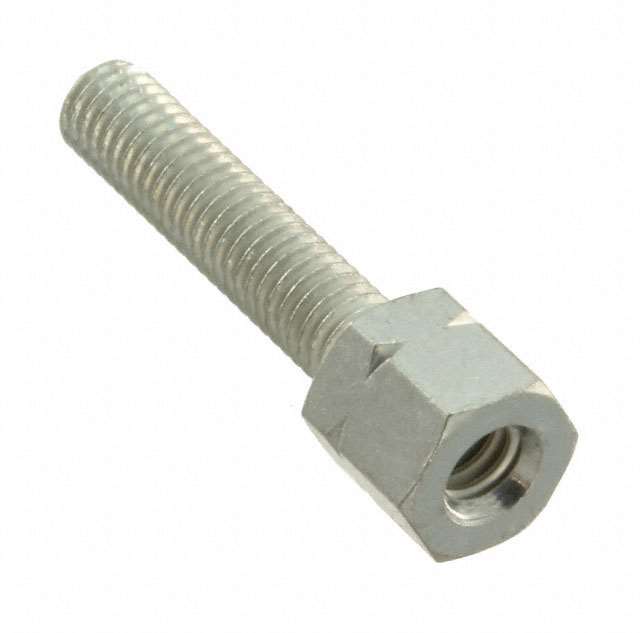

CONN D-SUB HD FEMALE SCREW LOCK

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB HD FEMALE SCREW LOCK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jackscrew Socket For AMPLIMITE Series HD

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1-829261-6	829261 Series

Accessory Type	Jackscrew Socket	Jackscrew Socket
For Use With/Related Products	AMPLIMITE Series HD	AMPLIMITE Series HD
Length - Below Head	-	5 - 7.91 mm
Length - Below Head	-	0.197 - 0.311 in
Length - Below Head [x]	0.559 in	0.559 in
Length - Below Head [x]	14.2 mm	14.2 mm
Length - Threaded Portion Below Head	14.2 mm	14.2 mm
Length - Threaded Portion Below Head	-	5 - 7.91 mm
Length - Threaded Portion Below Head [x]	0.559 "	0.197 - 0.559 in
Thread Size	4-40 Socket, M3 Screw	M3 Socket, M3 Screw, 4-40 Socket, 4-40 Screw

CONN D-SUB HD FEMALE SCREW LOCK

Part	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Accessory Type	For Use With/Related Products	Length - Below Head	Length - Below Head	Thread Size	Length - Threaded Portion Below Head	Length - Below Head [x]	Length - Below Head [x]
TE Connectivity AMP Connectors 829261-4	7.91 mm	0.311 in	Jackscrew Socket	AMPLIMITE Series HD	7.91 mm	0.311 in	M3 Screw, M3 Socket
TE Connectivity AMP Connectors 829261-6	7.91 mm	0.311 in	Jackscrew Socket	AMPLIMITE Series HD	7.91 mm	0.311 in	4-40 Socket, M3 Screw
TE Connectivity AMP Connectors 1-829261-6		0.559 "	Jackscrew Socket	AMPLIMITE Series HD			4-40 Socket, M3 Screw	14.2 mm	0.559 in	14.2 mm
TE Connectivity AMP Connectors 1-829261-2		0.559 "	Jackscrew Socket	AMPLIMITE Series HD			4-40 Screw, 4-40 Socket	14.2 mm	0.559 in	14.2 mm
TE Connectivity AMP Connectors 829261-8	7.91 mm	0.311 in	Jackscrew Socket	AMPLIMITE Series HD	7.91 mm	0.311 in	4-40 Screw, M3 Socket
TE Connectivity AMP Connectors 829261-2	7.91 mm	0.311 in	Jackscrew Socket	AMPLIMITE Series HD	7.91 mm	0.311 in	4-40 Screw, 4-40 Socket
TE Connectivity AMP Connectors 2-829261-4	5 mm	0.197 in	Jackscrew Socket	AMPLIMITE Series HD	5 mm	0.197 in	M3 Screw, M3 Socket
