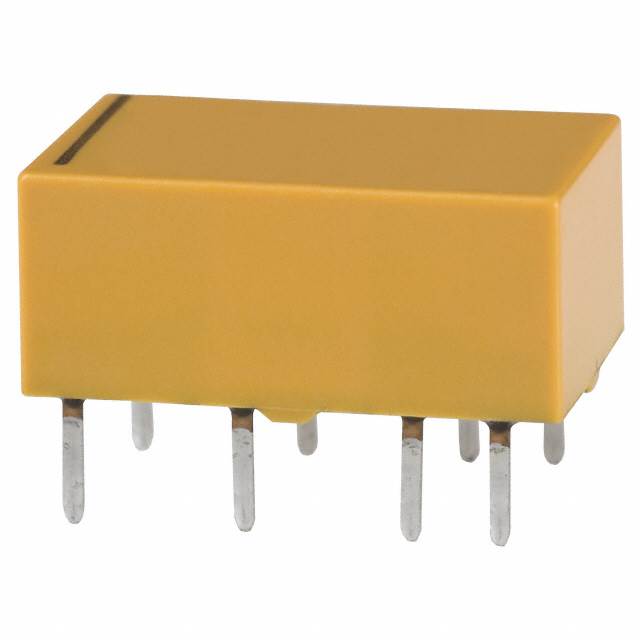

DF2E-DC12V
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE DPDT 1A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF2E-DC12V
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE DPDT 1A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF2E-DC12V |
|---|---|
| Coil Current | 16.7 mA |
| Coil Resistance | 720 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 1 A |
| Load - Max Switching | 60 W, 125 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 3 ms |
| Switching Voltage [Max] | 125 VAC, 60 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DF2E-DC Series
General Purpose Relay DPDT (2 Form C) Through Hole
