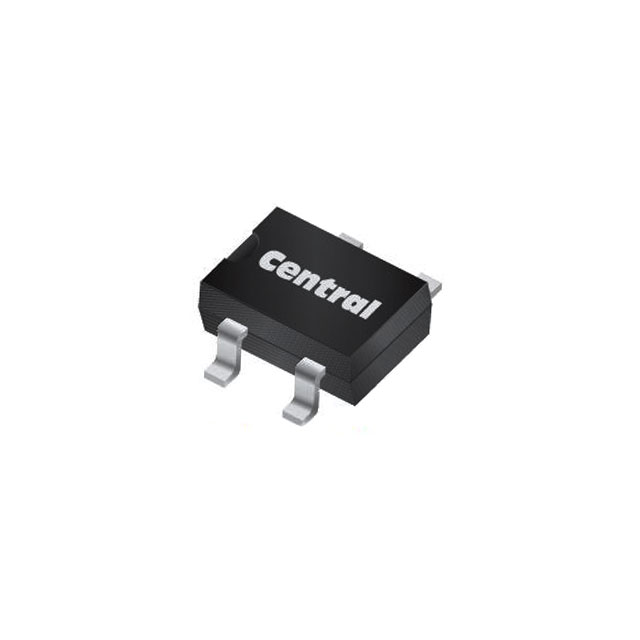

CBR1-D040S TR13 PBFREE

Active

Central Semiconductor Corp

BRIDGE RECT 1P 400V 1A 4SMDIP

Search across all available documentation for this part.

Active

Central Semiconductor Corp

BRIDGE RECT 1P 400V 1A 4SMDIP

Technical Specifications

Parameters and characteristics for this part

Specification	CBR1-D040S TR13 PBFREE

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMDIP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	400 V

Part	Mounting Type	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Technology	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Diode Type	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr
Central Semiconductor Corp CBR1-D040S TR13 PBFREE	Surface Mount	400 V	4-SMDIP	Standard	4-SMD Gull Wing	150 °C	-65 °C	1.1 V	Single Phase	1 A	10 µA
Central Semiconductor Corp CBR1-D040 PBFREE	Through Hole	400 V	4-DIP	Standard	4-EDIP (0.300" 7.62mm)	150 °C	-65 °C	1.1 V	Single Phase	1 A	10 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 400 V Surface Mount 4-SMDIP
