FA1-NKSJ-C01-0

Active

AMPHENOL RF

CONN FAKRA JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN FAKRA JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FA1-NKSJ-C01-0	FA1-NKSJ Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	188, 188A, 316, LMR-100, M17/119-RG174, RG-174, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMB, Fakra	SMB, Fakra
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock	Latch Lock
Features	Code K	Code K
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Curry	Curry
Impedance	50 Ohms	50 Ohms

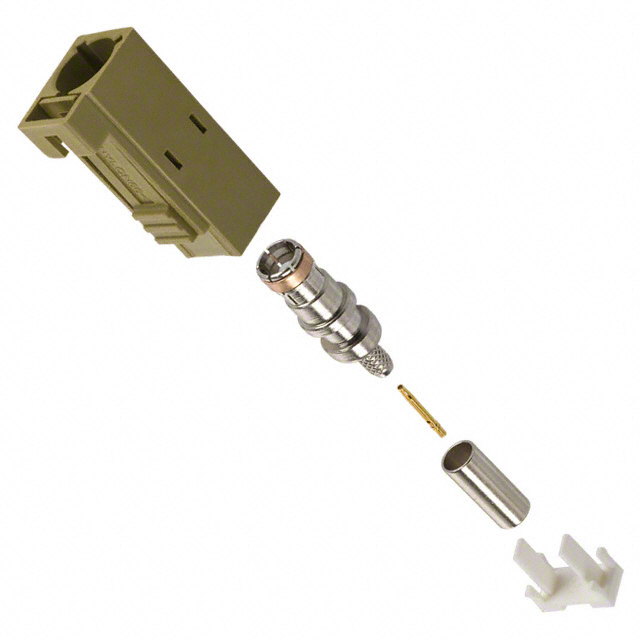

Includes	1 Housing, 1 Contact, 1 Ferrule, 1 Connector, 1 Locking Clip	1 Housing, 1 Contact, 1 Ferrule, 1 Connector, 1 Locking Clip
Insertion Loss	0.3 dB	0.3 dB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Crimp	Crimp

CONN FAKRA JACK STR 50 OHM CRIMP

Part	Body Finish	Fastening Type	Dielectric Material	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Body Material	Center Contact Plating	Shield Termination	Center Contact Material	Housing Color	Mounting Type	Connector Type	Impedance	Features	Frequency - Max [Max]	Includes	Contact Termination	Number of Ports	Insertion Loss
AMPHENOL RF FA1-NKSJ-C01-6	Nickel	Latch Lock	Polytetrafluoroethylene (PTFE)	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	-40 °C	115 °C	Fakra, SMB	Brass	Gold	Crimp	Beryllium Copper	Curry	Free Hanging (In-Line)	Female Socket, Jack	50 Ohms	Code K	4 GHz	1 Connector, 1 Contact, 1 Ferrule, 1 Housing, 1 Locking Clip	Crimp	1	0.3 dB
AMPHENOL RF FA1-NKSJ-C01-0	Nickel	Latch Lock	Polytetrafluoroethylene (PTFE)	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	-40 °C	115 °C	Fakra, SMB	Brass	Gold	Crimp	Beryllium Copper	Curry	Free Hanging (In-Line)	Female Socket, Jack	50 Ohms	Code K	4 GHz	1 Connector, 1 Contact, 1 Ferrule, 1 Housing, 1 Locking Clip	Crimp	1	0.3 dB
AMPHENOL RF FA1-NKSJ-C04-0	Nickel	Latch Lock	Polytetrafluoroethylene (PTFE)	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	-40 °C	115 °C	Fakra, SMB	Brass	Gold	Crimp	Beryllium Copper	Curry	Free Hanging (In-Line)	Female Socket, Jack	50 Ohms	Code K	4 GHz	1 Connector, 1 Contact, 1 Ferrule, 1 Housing, 1 Locking Clip	Crimp	1	0.3 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
