796190-1

Active

TE Connectivity AMP Connectors

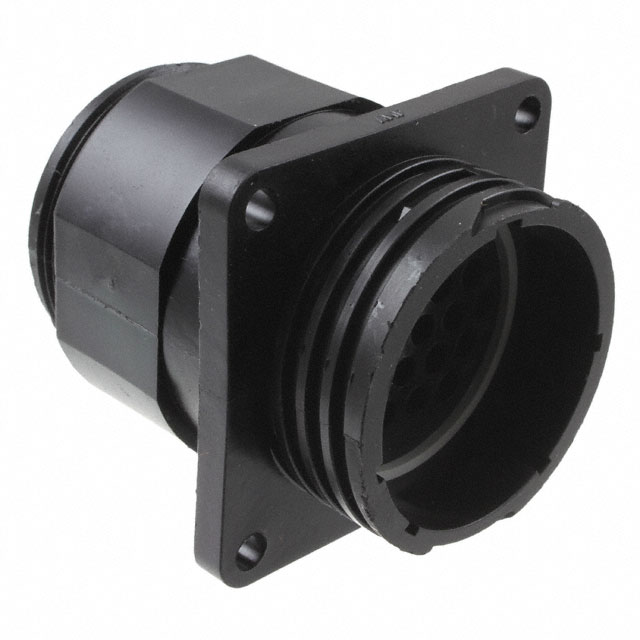

CONN RCPT HSNG MALE 24POS PNL MT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 24POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	796190-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	24
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert [Max]	24
Shell Size - Insert [Min]	23
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSNG MALE 24POS PNL MT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Features	Connector Type	Ingress Protection	Note	Type	Contact Type	Housing Color	Contact Size	Orientation	Shielding	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Material Flammability Rating	Contact Shape	Mounting Feature
TE Connectivity AMP Connectors 796190-1	105 ░C	-55 °C	24	Backshell	Receptacle Housing	IP67 - Dust Tight, Waterproof	Contacts Not Included	For Male Pins	Crimp	Black	16	Keyed	Unshielded	24	23	UL94 V-0	Circular	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Circular Connector Receptacle Housing Panel Mount Backshell
