3128-4-00-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.

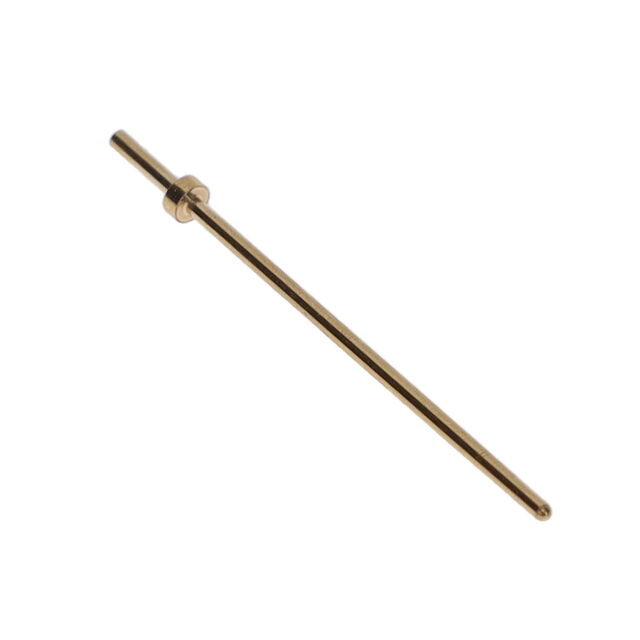

CONN PC PIN CIRC .020DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3128-4-00-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .020DIA GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3128-4-00-34-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.17 mm |
| Flange Diameter [diameter] | 0.046 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 13.97 mm |
| Length - Above Flange [x] | 0.55 in |
| Length - Below Flange [x] | 0.1 in |
| Length - Below Flange [x] | 2.54 mm |
| Length - Overall [x] | 0.67 " |
| Length - Overall [x] | 17.02 mm |
| Mounting Hole Diameter [diameter] | 0.61 mm |
| Mounting Hole Diameter [diameter] | 0.024 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.51 mm |
| Pin Size - Above Flange [diameter] | 0.02 in |
| Pin Size - Below Flange [diameter] | 0.51 mm |
| Pin Size - Below Flange [diameter] | 0.02 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.41 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.18 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.10 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.78 | |||
| 3000 | $ 0.73 | |||
Description
General part information
3128-4 Series
PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
Documents
Technical documentation and resources
